PB05-L LoRaWAN® Button

https://www.aiotkart.com/web/image/product.template/17725/image_1920?unique=bd09335

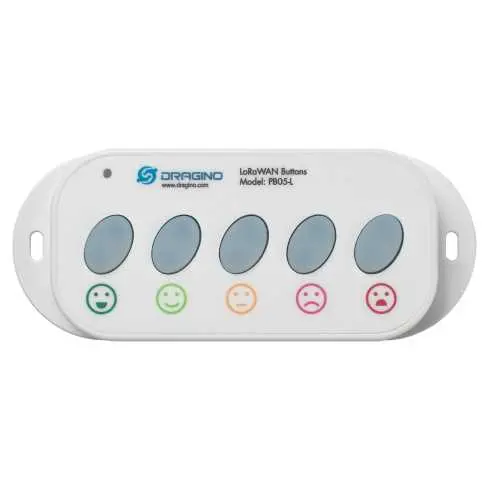

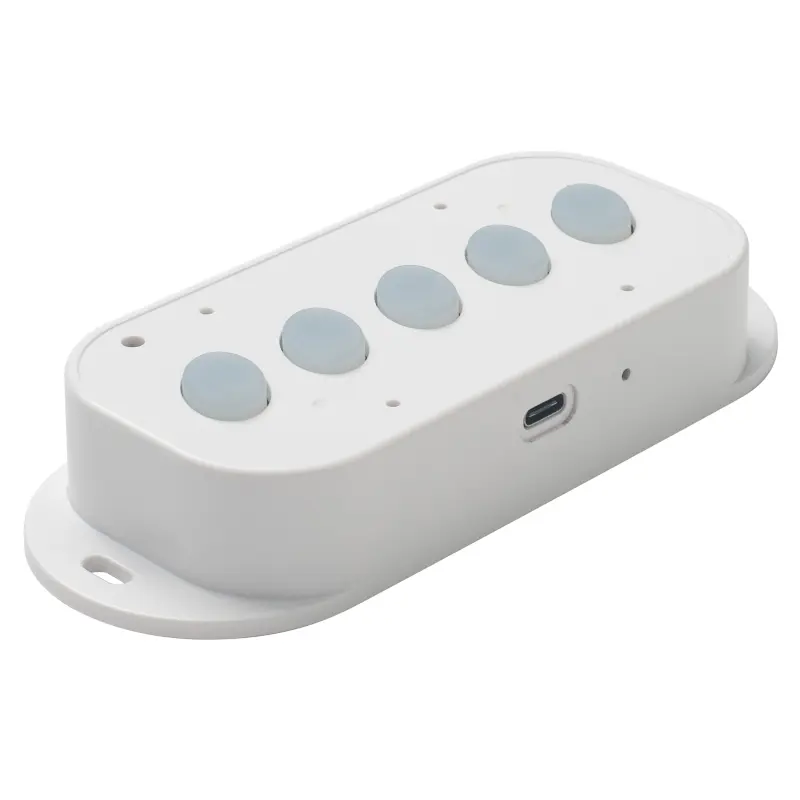

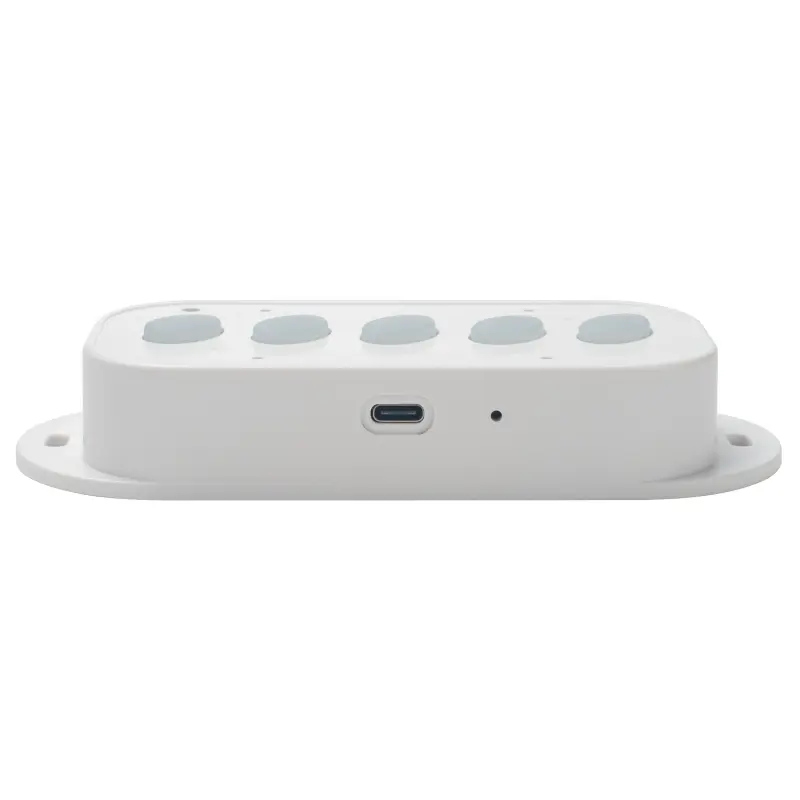

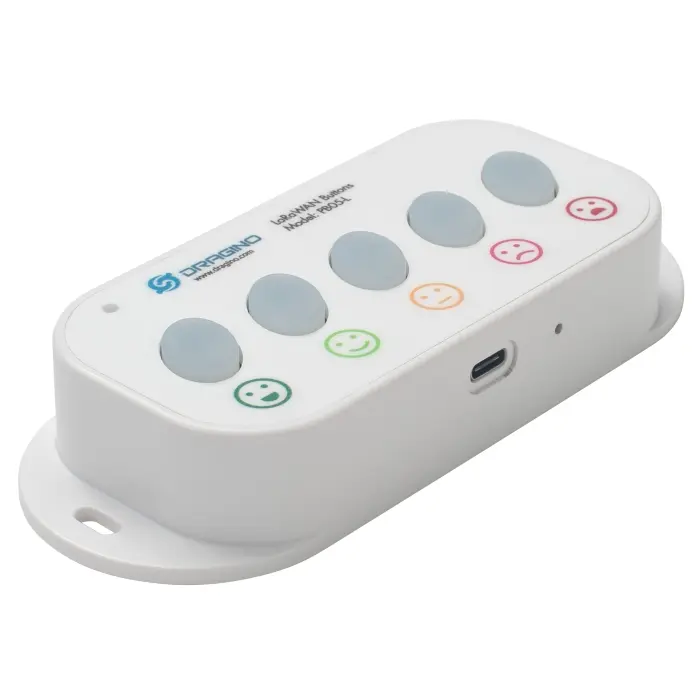

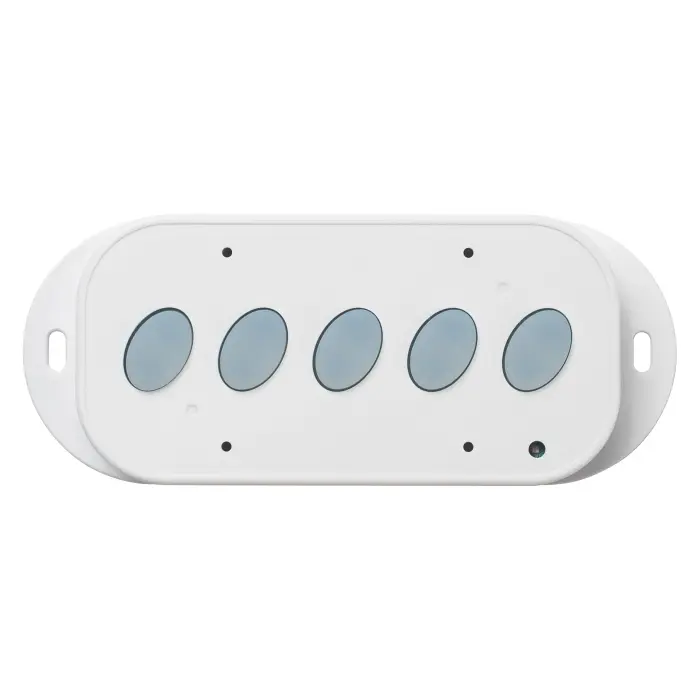

The Dragino PB05-L LoRaWAN® Button is a wireless five-key push button device designed for smart building, industrial automation, and IoT control applications. When any of the five buttons is pressed, PB05-L transmits the signal to an IoT server over a long-range LoRaWAN® network, enabling reliable and low-power wireless communication.

PB05-L is fully compatible with LoRaWAN® v1.0.3 Class A protocol and works seamlessly with standard LoRaWAN® gateways. It is powered by two AA (LR6) batteries and supports up to approximately 30,000 button presses (Key1–Key5), ensuring long operational life.

The device includes a built-in speaker that provides audible feedback when a button is pressed or when a response is received from the server. The speaker can be disabled if required. For flexible deployment, PB05-L is shipped with a default PVC sticker sheet (not pre-attached), allowing users to design and customize their own button panel layout.

AIoTkart® supplies genuine Dragino PB05-L LoRaWAN Buttons in India with full support for LoRaWAN® integration and industrial IoT deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Five programmable push buttons
  • Built-in speaker with configurable sound feedback
  • Supports 2 × AA (LR6) batteries
  • Up to ~30,000 total button presses
  • Low power consumption design
  • AT commands for parameter configuration
  • Remote configuration via LoRaWAN® downlink
  • Firmware upgrade via program port
  • Wall attachable design
  • IP52 rated enclosure
  • Customizable PVC sticker panel

Power Consumption

  • Idle Mode: 5 µA
  • Transmit Mode: Max 110 mA

Battery

  • Power Supply: 2 × AA LR6 batteries
  • Estimated Life: Up to 30k button presses (Key1–Key5 combined)

Environmental

  • Operating Temperature:
    • Standard: -10°C to 50°C
    • Extended Option: -40°C to 60°C

Network & Protocol

  • Protocol: LoRaWAN® v1.0.3 Class A
  • Supported Frequency Bands:
    CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915

Protection

  • IP Rating: IP52

Package Includes

  • 1 × PB05-L LoRaWAN® Push Button

Note: The PVC sticker is not attached by default to allow custom panel design.

The Dragino PB05-L LoRaWAN® Button is ideal for:

  • Smart Buildings (call buttons, scene control, alerts)
  • Smart Factory floor communication
  • Warehouse and logistics signaling
  • Smart City public service points
  • Emergency notification systems
  • Industrial workflow triggers
  • Healthcare assistance buttons

PB05-L includes five programmable push buttons that can trigger different events on an IoT server.

Yes. The device is shipped with a PVC sticker sheet that is not pre-attached, allowing full customization of button icons and labels.

Yes. PB05-L supports LoRaWAN® v1.0.3 Class A and works with standard LoRaWAN® gateways operating in supported frequency bands.

Documents

PB05-L_User_Manual

Download

PB05-L_Data sheet

Download
