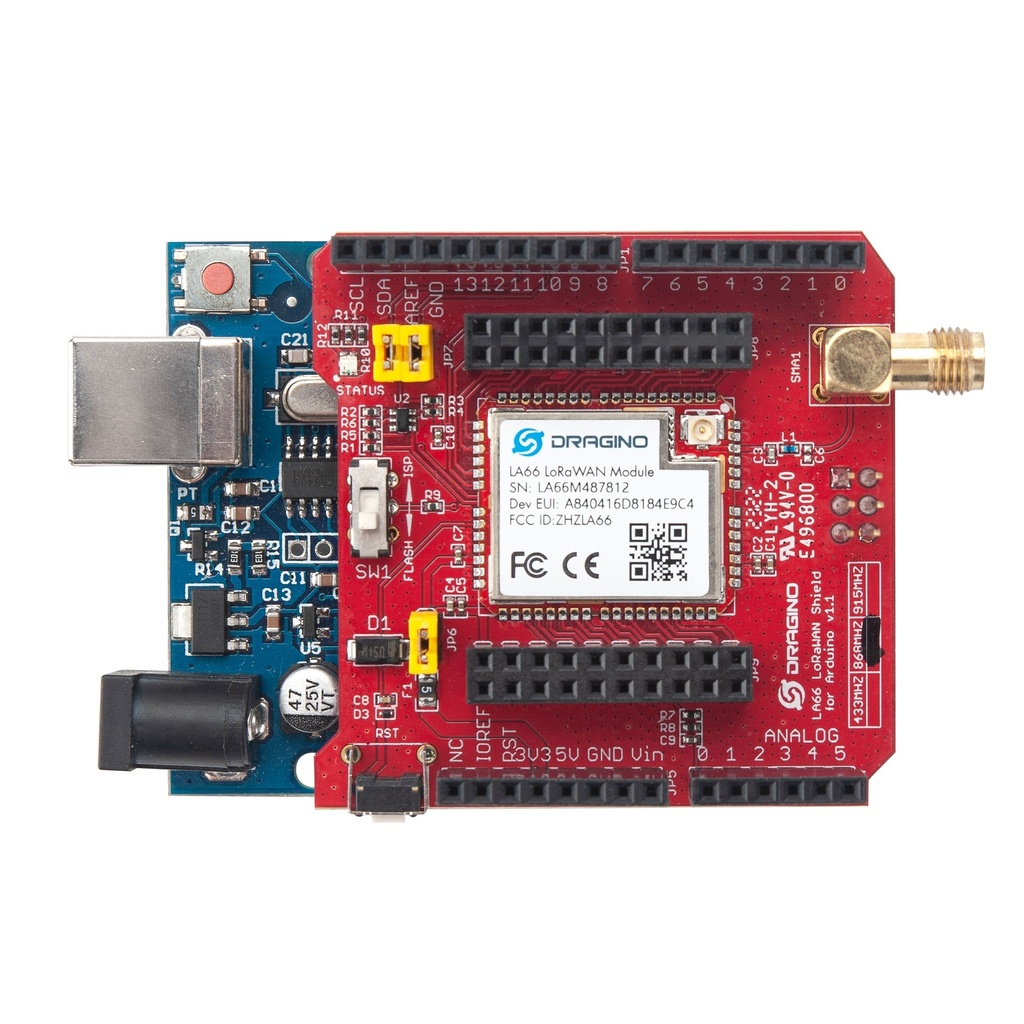

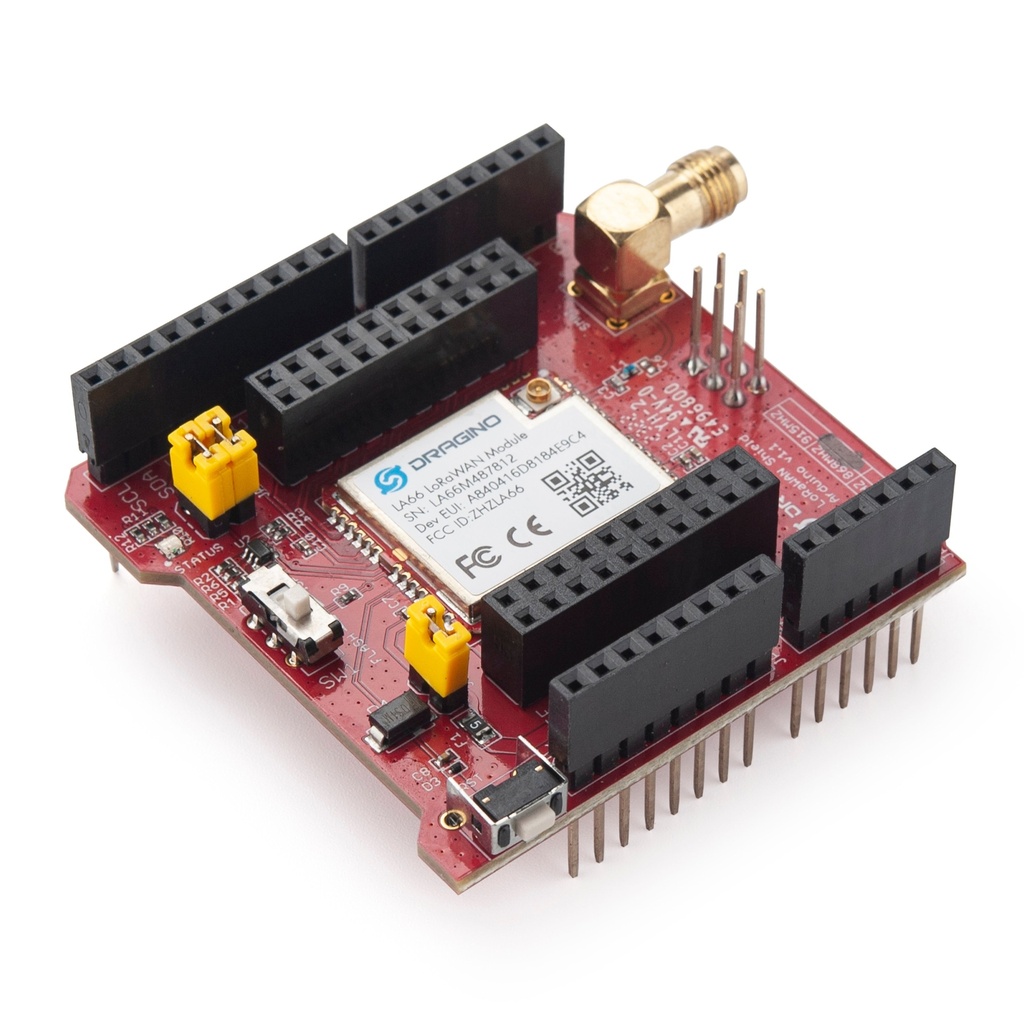

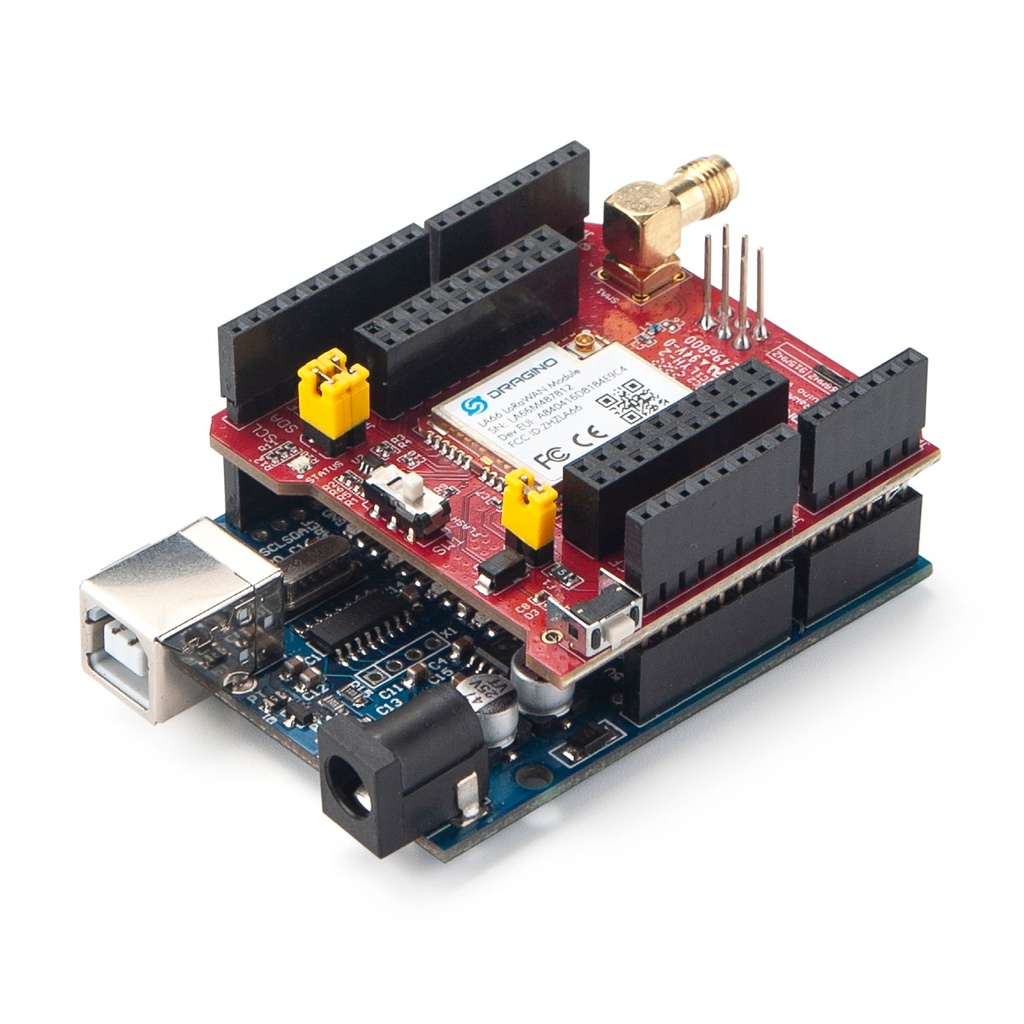

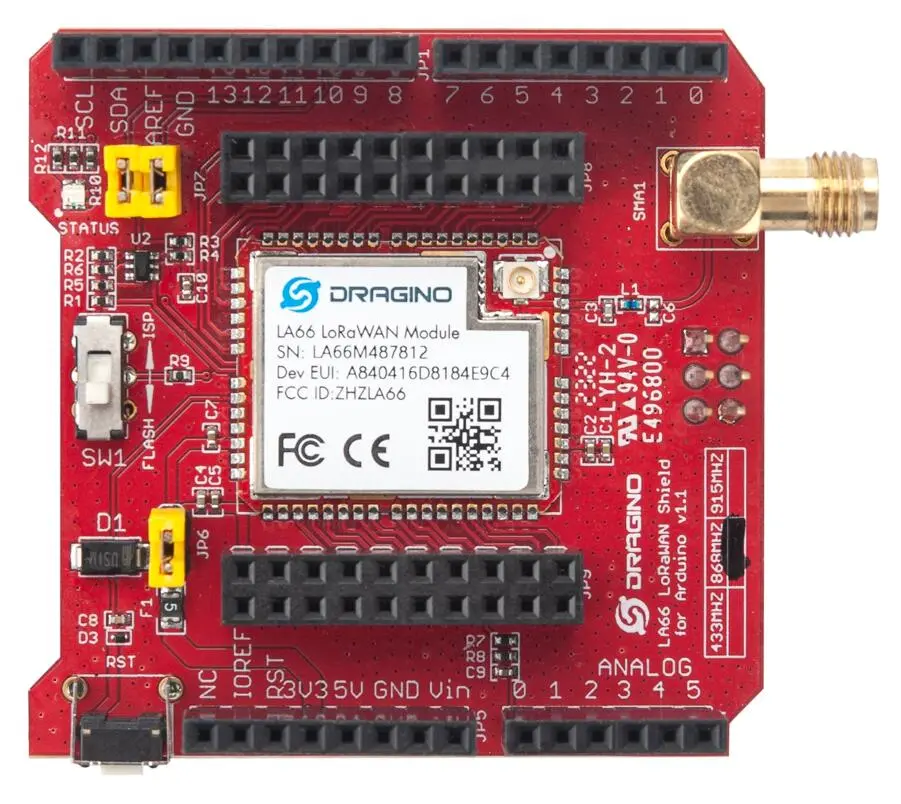

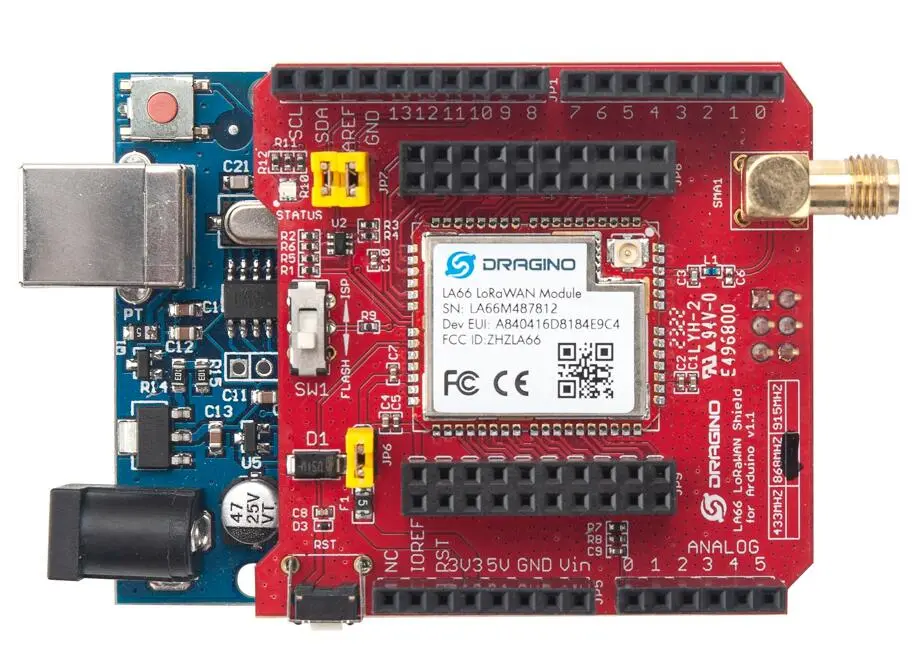

LA66 Shiled LoRaWAN® Shield for Arduino (Not Inclusive of Arduino)

https://www.aiotkart.com/web/image/product.template/17678/image_1920?unique=29adf53

The Dragino LA66 LoRaWAN® Shield for Arduino is a powerful and reliable LoRa / LoRaWAN® expansion board designed to rapidly enable long-range wireless connectivity for Arduino-based IoT projects in India. Built on the proven LA66 LoRaWAN® module, this shield allows developers, system integrators, and industrial solution providers to add secure LoRaWAN® v1.0.3 or peer-to-peer LoRa communication to embedded systems. As an Authorized Dragino Distributor in India, AIoTkart® supplies genuine LA66 Shield solutions suitable for industrial automation, smart infrastructure, utilities, and institutional deployments. With ultra-low power consumption, AT command support, global OTAA keys, and wide frequency compatibility, the LA66 Shield is ideal for scalable LPWAN deployments across Indian commercial and industrial environments. (Note: Arduino board not included.)

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • Arduino shield based on Dragino LA66 LoRaWAN® module
  • Supports LoRaWAN® v1.0.3 protocol
  • Supports open-source peer-to-peer LoRa protocol
  • World-unique OTAA key for secure LoRaWAN® registration
  • AT command control via UART-TTL interface
  • Firmware upgradeable via UART
  • TCXO crystal for stable RF performance in extreme temperatures
  • Ultra-long RF communication range
  • High RF output up to +22 dBm
  • High receiver sensitivity up to -148 dBm
  • Available in multiple LoRaWAN® frequency bands (433/868/915 MHz)
  • SMA antenna connector


Processor & Memory

  • CPU: 32-bit, 48 MHz
  • Flash: 256 KB
  • RAM: 64 KB

Electrical

  • Input Power Range: 1.8V – 3.7V
  • I/O Voltage: 3.3V
  • Power Consumption: < 4 µA

RF Performance

  • Frequency Range: 150 MHz – 960 MHz
  • Max RF Output: +22 dBm constant output
  • Sensitivity: -148 dBm
  • LoRa TX Current: <90 mA @ +17 dBm, 108 mA @ +22 dBm
  • LoRa RX Current: <9 mA

Environmental

  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -55°C to +125°C
  • Operating Humidity: 10–95% (Non-condensing)
  • Storage Humidity: 5–95% (Non-condensing)

Mechanical

  • Device Size: 18 x 4 x 8.2 cm
  • Weight: 79 g

Package Includes

  • 1 x LA66 LoRaWAN® Shield

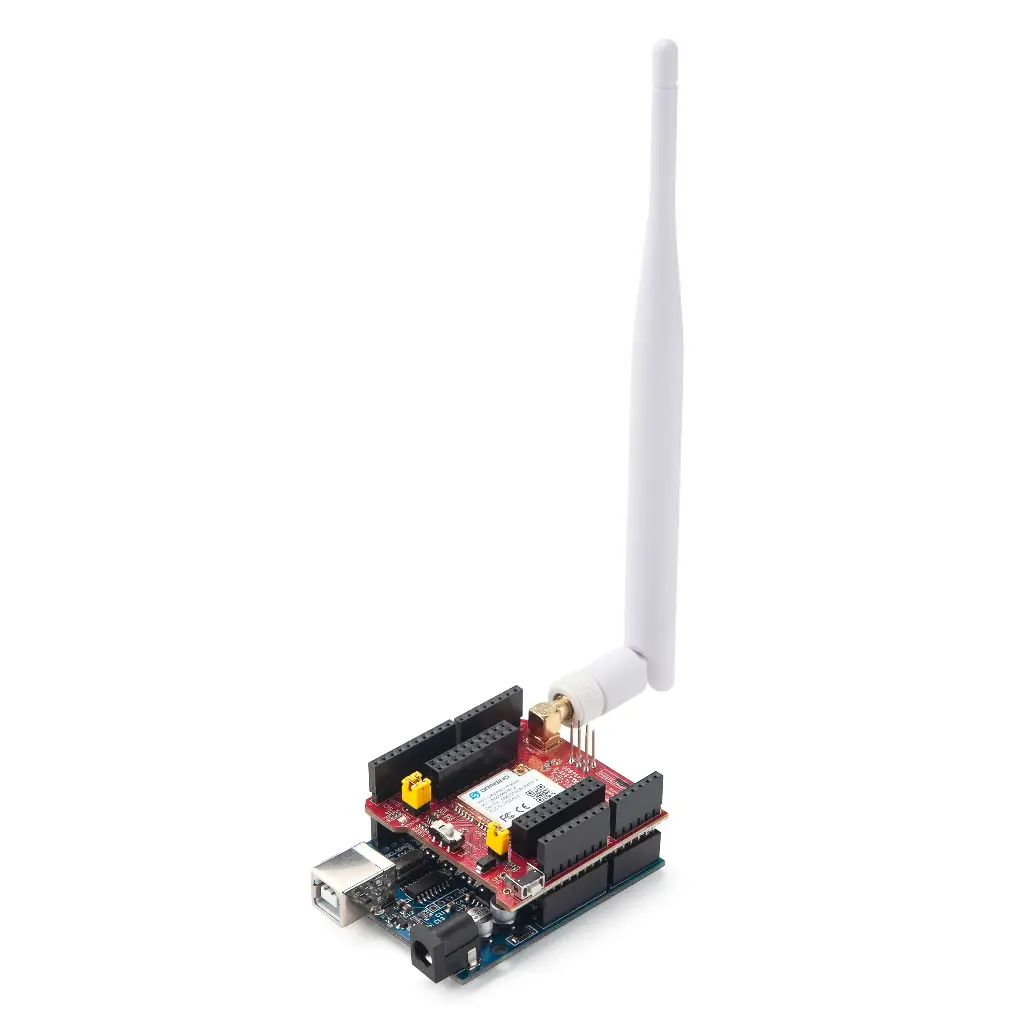

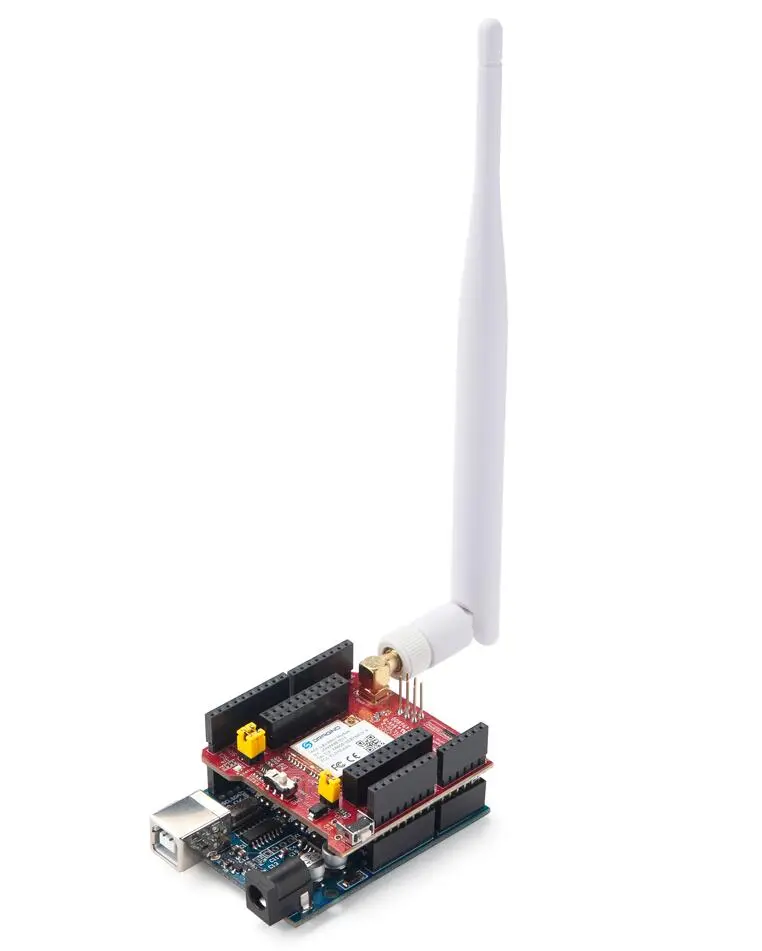

  • 1 x Glue Stick Antenna (433/868/915 MHz as per order)

The Dragino LA66 LoRaWAN® Shield for Arduino is ideal for:

  • Industrial automation and remote monitoring systems
  • Commercial infrastructure IoT deployments
  • Water system monitoring and smart metering
  • Cold chain asset tracking and environmental sensing
  • Manufacturing data acquisition systems
  • Utility monitoring and energy management
  • Smart infrastructure and municipal projects
  • Campuses and institutional IoT research deployments

You can buy the genuine Dragino LA66 LoRaWAN Shield in India directly from AIoTkart, the authorized Dragino distributor offering PAN-India delivery and institutional support.

Yes, the LA66 Shield supports LoRaWAN® v1.0.3 and is available in frequency bands suitable for regional deployments. It is ideal for industrial LoRaWAN® networks, private gateways, and IoT server integrations in India.

Yes, apart from LoRaWAN® protocol, the LA66 Shield supports open-source peer-to-peer LoRa communication, making it suitable for non-LoRaWAN® custom IoT applications.
