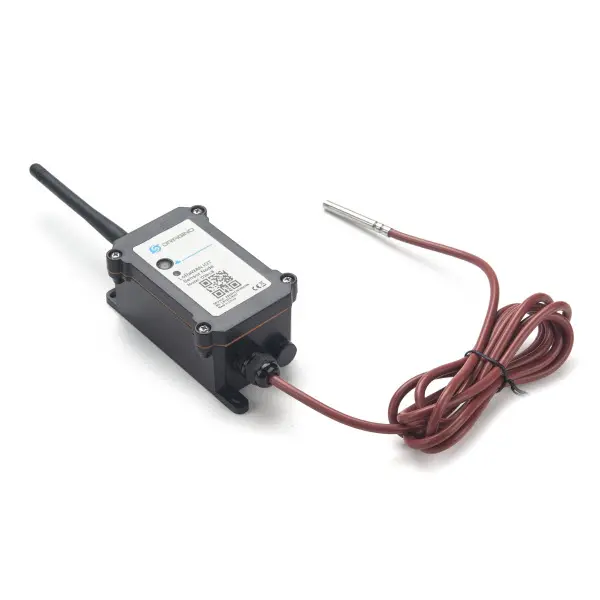

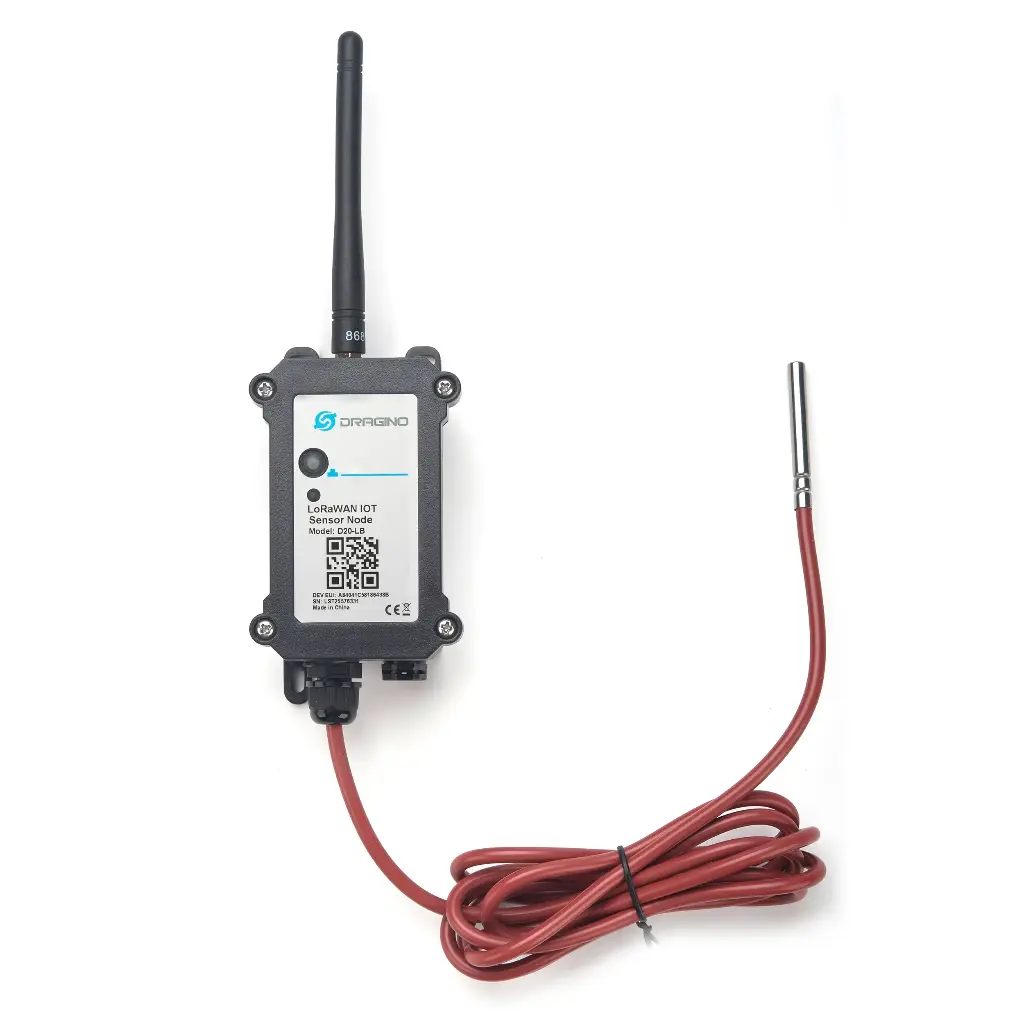

D20-LB LoRaWAN® Temperature Sensor

https://www.aiotkart.com/web/image/product.template/11826/image_1920?unique=8bd9292

The Dragino D20-LB LoRaWAN® Temperature Sensor is a long-range industrial temperature monitoring device designed for outdoor and harsh environment deployments across India. Built on LoRaWAN® LPWAN technology, the D20-LB converts accurate temperature readings into secure wireless data and transmits them to an IoT platform via a LoRaWAN® gateway. Equipped with a DS18B20 temperature probe (2 meters cable), the sensor supports a wide measurement range from -55°C to +125°C with high accuracy. The device features ultra-low power consumption and is powered by an 8500mAh Li-SOCI2 battery for up to 5 years of operation, making it ideal for industrial automation, utilities, and infrastructure projects. AIoTkart®, as an Authorized Dragino Distributor in India, supplies genuine D20-LB sensors with PAN-India delivery and deployment support for Industrial IoT applications.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Wide temperature measurement range (-55°C to +125°C)
  • DS18B20 temperature sensor with 2m cable
  • Ultra-long-range LPWAN communication
  • Temperature alarm support
  • Datalog feature (stores data during network outage)
  • Bluetooth v5.1 configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • IP66 waterproof enclosure for outdoor use
  • 8500mAh Li/SOCI2 battery (D20-LB variant)
  • Solar + 3000mAh Li-ion option (D20S-LS variant)

Common Electrical Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Temperature Sensor

  • Sensor Model: Dallas DS18B20
  • Measurement Range: -55°C to +125°C
  • Accuracy: ±0.5°C (max ±2.0°C)
  • Cable Length: 2 meters

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm

Battery (D20-LB)

  • Type: Li/SOCI2 non-rechargeable
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Mechanical

  • Enclosure: IP66 Waterproof
  • Device Size: 120 × 55 × 200 mm
  • Weight: 372 g

Package Includes

  • 1 × D20-LB LoRaWAN® Outdoor Temperature Sensor

The Dragino D20-LB LoRaWAN® Temperature Sensor is suitable for:

  • Industrial automation and process monitoring
  • Manufacturing plants and production lines
  • Cold chain and refrigeration systems
  • Water systems and pump stations
  • Utilities and remote infrastructure
  • Power distribution rooms
  • Outdoor environmental monitoring
  • Commercial warehouses and storage facilities
  • Campuses and institutional infrastructure

Its long-range LoRaWAN® capability makes it ideal for distributed industrial assets and remote monitoring applications across India.

You can purchase the genuine Dragino D20-LB LoRaWAN® Temperature Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering PAN-India delivery and project support.

Yes, the D20-LB supports LoRaWAN® 1.0.3 Class A protocol and IN865 band compatibility, allowing seamless integration with standard LoRaWAN® gateways deployed across India for industrial IoT networks.

The D20-LB is powered by an 8500mAh Li/SOCI2 battery for long-term operation, while the D20S-LS variant includes a solar panel with a 3000mAh Li-ion rechargeable battery for extended outdoor deployments.

Documents

D20-LB_User_Manual

Download

D20-LB_Datasheet

Download

D20-LB_Firmware

Download
