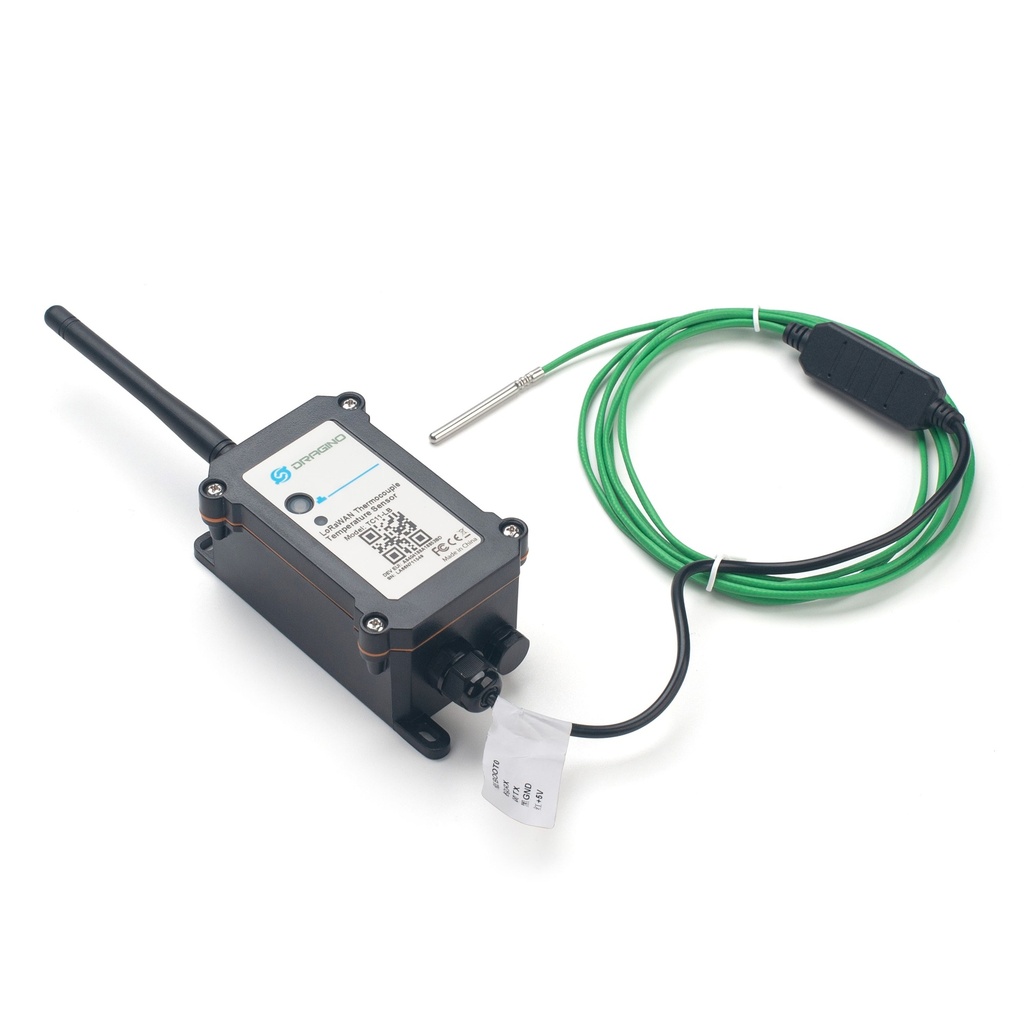

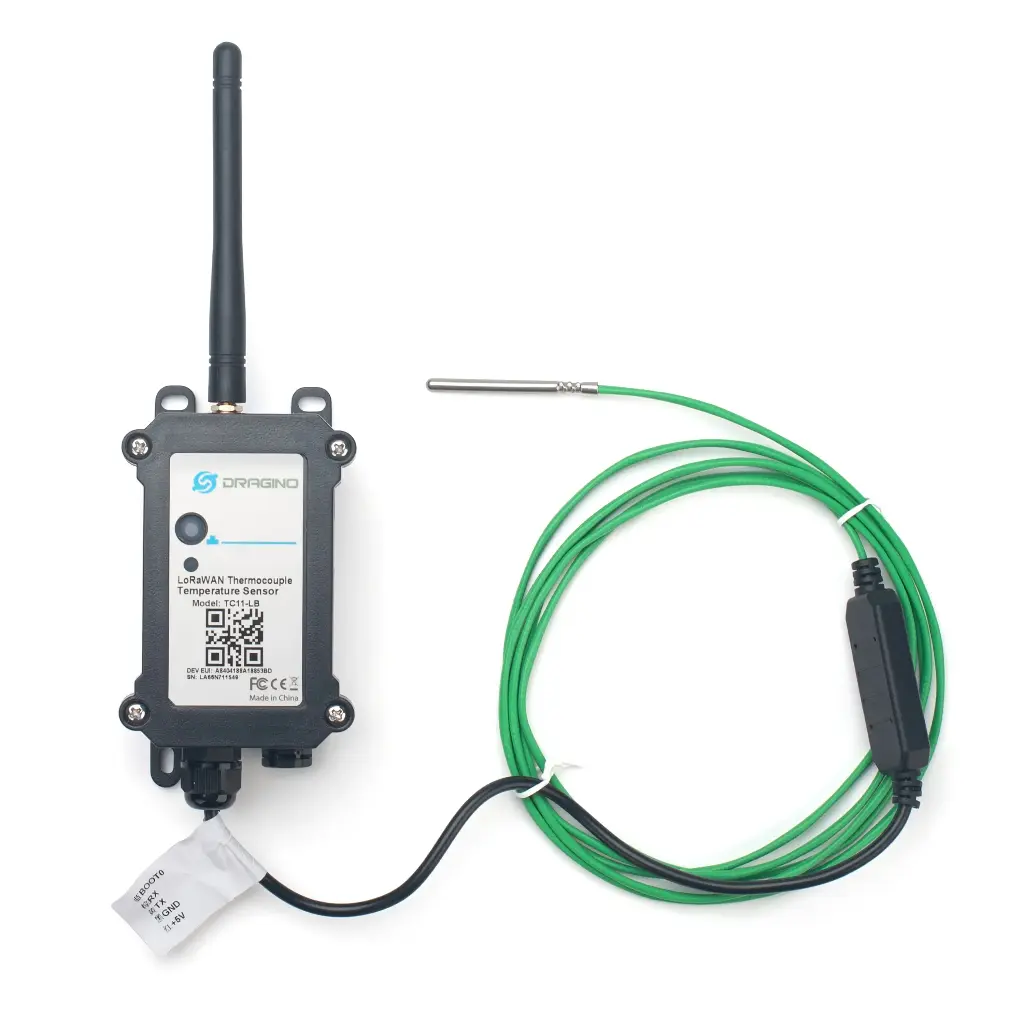

TC11-LB K-Type Thermocouple Converter (Exclude Thermocouple Sensor)

The Dragino TC11-LB is an industrial LoRaWAN® thermocouple converter designed for reliable remote temperature monitoring. It supports a K-type thermocouple, converts temperature readings into LoRaWAN data, and transmits them to an IoT server over long-range, low-power LoRaWAN networks. The device is suitable for harsh industrial environments and long-term deployments.

Key Specifications

• Protocol: LoRaWAN v1.0.3 Class A

• Thermocouple Type: K-Type (external, not included)

• Temperature Range: –50 °C to +200 °C

• Battery: 8500mAh Li-SOCl₂ (non-rechargeable)

• Battery Life: Several years (usage dependent)

• Features:

  • Temperature alarm with configurable thresholds

  • Datalogging for offline data storage

  • BLE configuration

  • Wireless OTA firmware update

  • Periodic uplink & downlink configuration

• Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Operating Temperature: –40 °C to +85 °C

Applications

Industrial temperature monitoring, furnaces and boilers, manufacturing processes, energy systems, and equipment health monitoring using K-type thermocouples.

USER MANUAL:

 TC11-LB_User_Manual

DATA SHEET:

TC11-LB_Datasheet

FIRMWARE:

TC11-LB_Firmware
