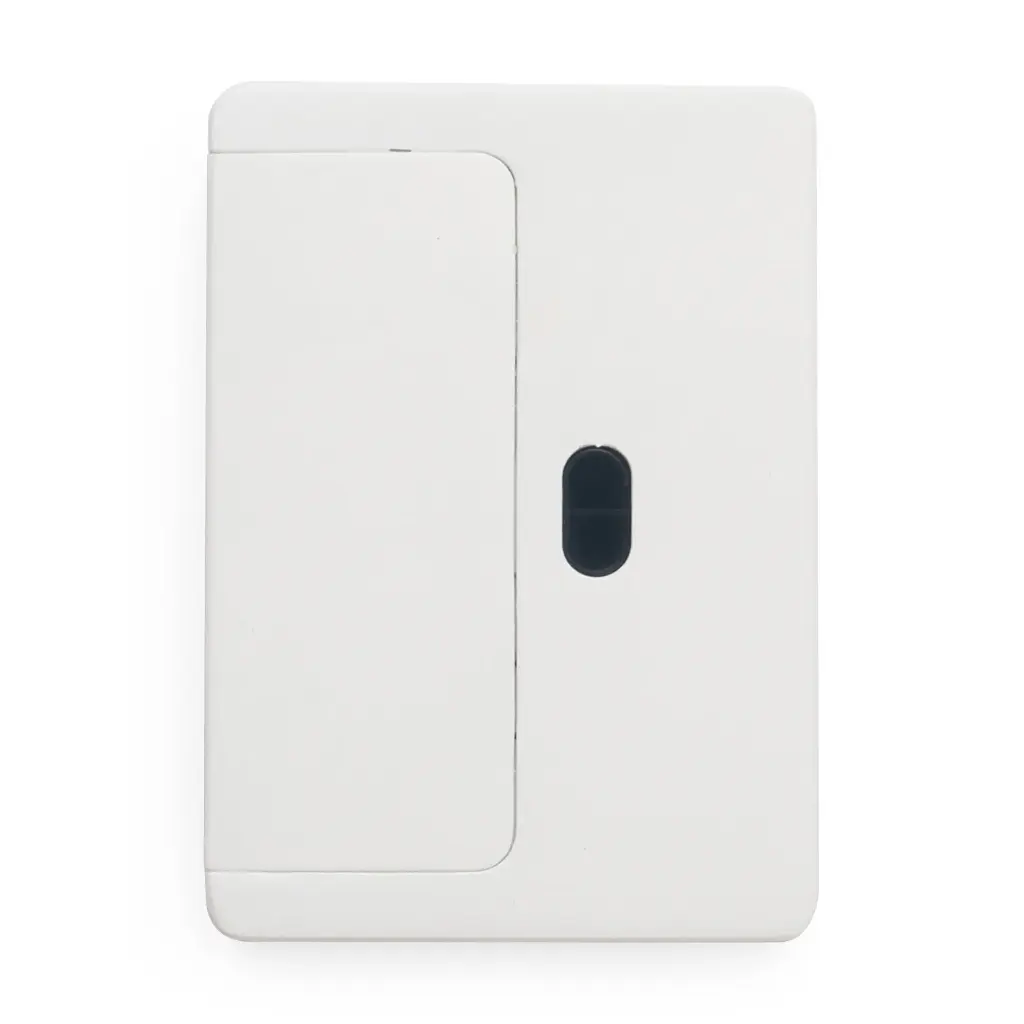

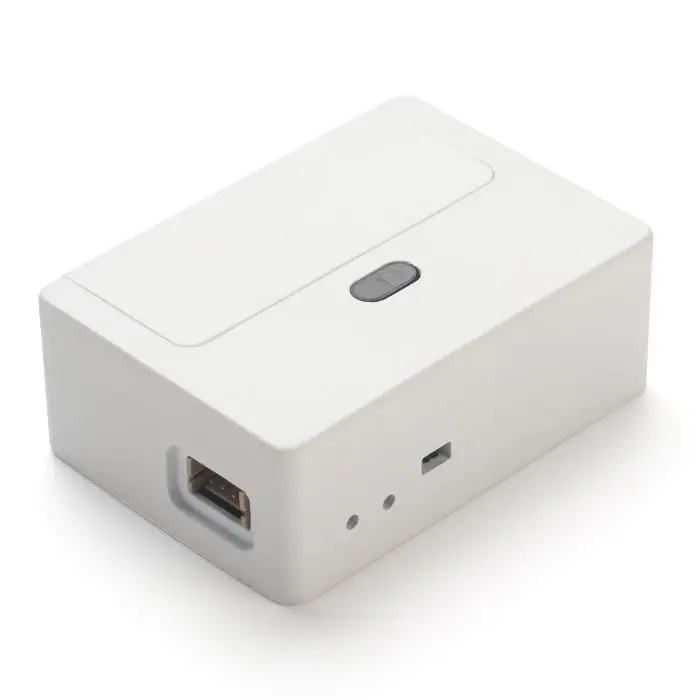

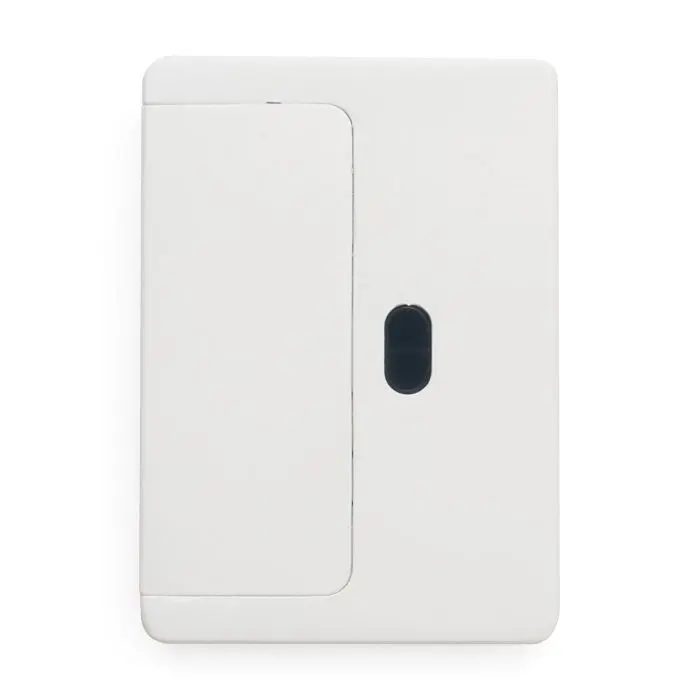

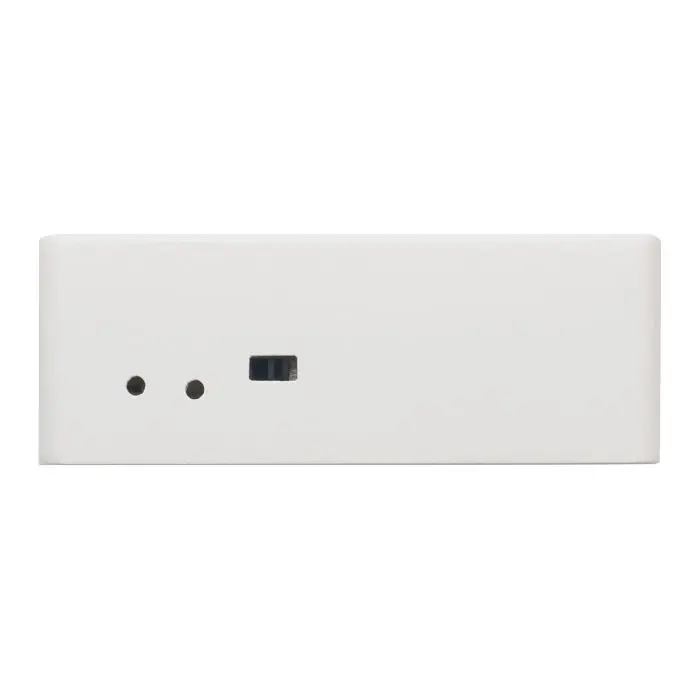

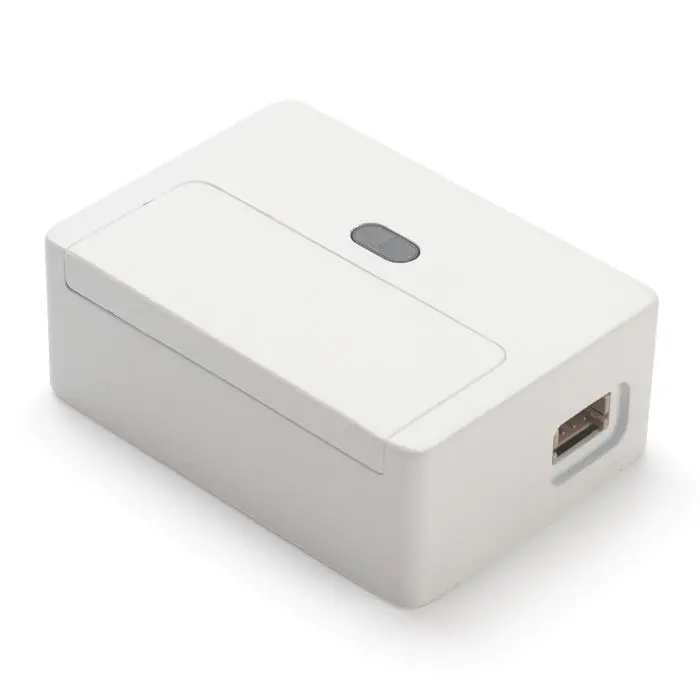

DS20L LoRaWAN® LiDAR ToF Distance Detection Sensor

https://www.aiotkart.com/web/image/product.template/17676/image_1920?unique=8483838

The Dragino DS20L LoRaWAN® LiDAR ToF Distance Detection Sensor is an industrial-grade long-range distance measurement device designed for smart IoT deployments. Using advanced LiDAR (Time-of-Flight) technology, the DS20L accurately measures distances between 3cm to 200cm and transmits the data wirelessly over LoRaWAN® networks to centralized IoT platforms.

Built for smart city, building automation, and industrial monitoring applications, the DS20L provides ultra-long-range communication with low power consumption and high interference immunity. It operates on LoRaWAN® v1.0.3 Class A protocol and is fully compatible with standard LoRaWAN® gateways, including support for the IN865 frequency band in India.

The device includes a built-in 2400mAh non-rechargeable battery designed for multi-year operation. It can also be powered externally for continuous monitoring, real-time distance alarms, or object counting applications. AIoTkart® supplies genuine Dragino DS20L sensors across India with enterprise and deployment support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LiDAR ToF distance measurement (3cm to 200cm)
  • LoRaWAN® v1.0.3 Class A compliant
  • Compatible with IN865 and global frequency bands
  • Built-in 2400mAh battery for long-term use
  • Supports external power supply option
  • Periodic or continuous detection modes
  • Distance alarm & counting mode
  • Remote configuration via LoRaWAN® downlink
  • AT command configuration
  • Firmware upgrade via program port or LoRa protocol
  • High interference immunity with low power consumption

LiDAR Sensor Specifications

  • Measurement Range: 3cm ~ 200cm @ 90% reflectivity
  • Accuracy:
    • ±2cm (3cm ~ 100cm)
    • ±5% (100cm ~ 200cm)
  • Field of View (FoV): ±9° (Total 18°)
  • Light Source: VCSEL
  • Operating Temperature: -40°C to +80°C
  • Operating Humidity: 0 ~ 99.9% RH (No condensation)
  • Storage Temperature: -10°C to +45°C

LoRa Specifications

  • LoRaWAN® v1.0.3 Class A
  • Long-range spread spectrum communication
  • High interference immunity
  • Compatible with standard LoRaWAN® gateways

Power

  • Built-in 2400mAh non-rechargeable battery
  • Optional external power input
  • Designed for multi-year operation (depending on reporting interval)

The Dragino DS20L is suitable for:

  • Smart parking occupancy detection
  • Tank level and bin level monitoring
  • Industrial object counting systems
  • Building automation and smart infrastructure
  • Warehouse space utilization monitoring
  • Smart city infrastructure monitoring
  • Logistics and storage management

The DS20L measures distances from 3cm to 200cm using LiDAR ToF technology.

Yes, it supports distance alarm and counting modes, making it suitable for parking occupancy and vehicle detection applications.

Yes, the DS20L is compatible with LoRaWAN® gateways supporting IN865 frequency band in India.
