AQS01-L LoRaWAN® Air Quality Sensor (CO2)

https://www.aiotkart.com/web/image/product.template/17633/image_1920?unique=59a2723

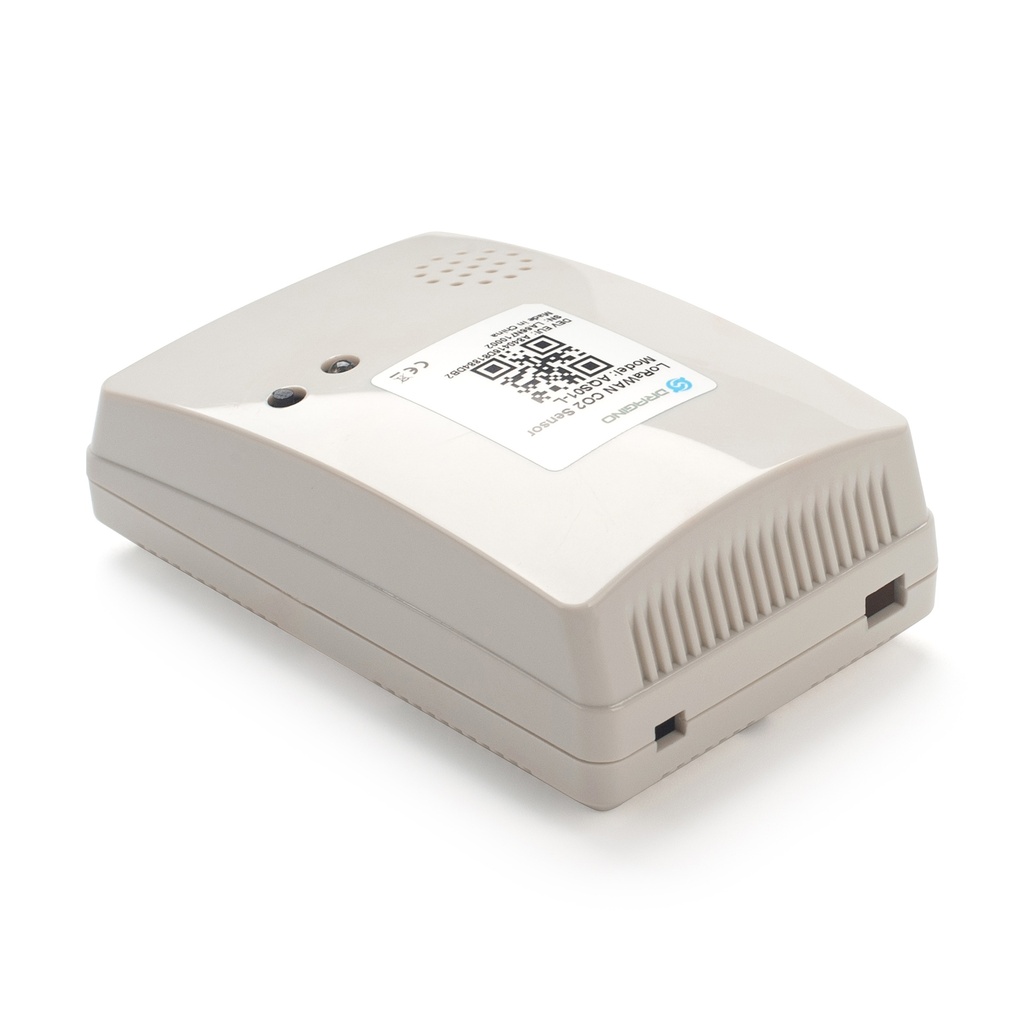

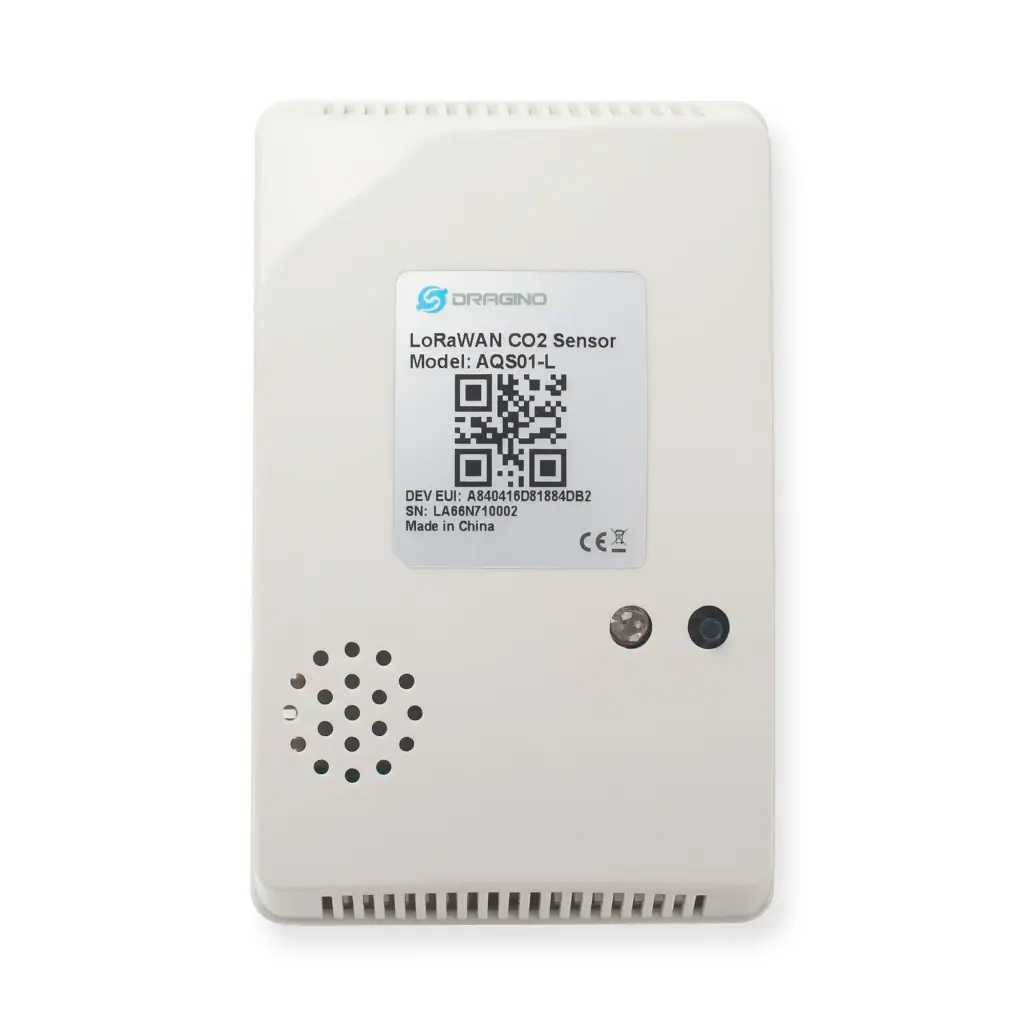

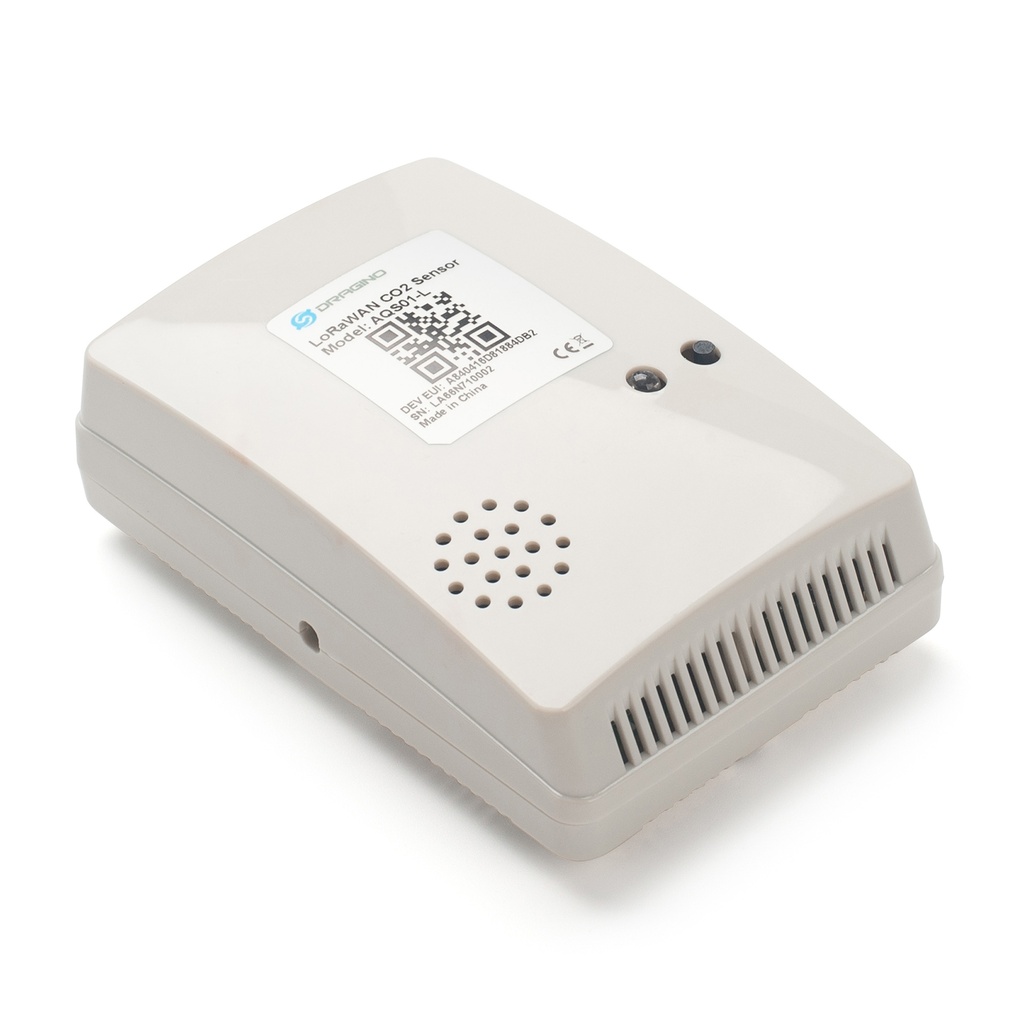

The Dragino AQS01-L LoRaWAN® Air Quality Sensor (CO2) is an advanced indoor environmental monitoring device designed for Industrial IoT, commercial buildings, and institutional infrastructure projects across India. This multi-parameter LoRaWAN® sensor measures CO2 (NDIR-based), temperature, relative humidity, and air pressure, and transmits data securely to an IoT server via long-range LPWAN connectivity. Powered by a 4000mAh ER18505 Li-SOCI2 battery with up to 2+ years of operation, the AQS01-L is engineered for reliable indoor air quality monitoring. It supports LoRaWAN® 1.0.3 Class A protocol, Bluetooth configuration, OTA firmware updates, datalog functionality, and CO2 alarm alerts. AIoTkart®, as an Authorized Dragino Distributor in India, supplies genuine AQS01-L sensors with PAN-India shipping and deployment support for smart buildings, schools, offices, and industrial environments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Measures CO2, Temperature, Humidity & Air Pressure
  • NDIR-based CO2 sensing technology
  • CO2 and Temperature alarm support
  • Built-in 4000mAh Li-SOCI2 battery
  • Battery life over 2 years (usage dependent)
  • Bluetooth v5.1 configuration support
  • Wireless OTA firmware update
  • Datalog feature with LoRaWAN® retrieval
  • Periodic uplink & remote downlink configuration
  • High RF output power up to +22 dBm

Common Electrical Characteristics

  • Power Supply: 4000mAh Li-SOCI2 battery (2.5V ~ 3.6V)
  • Operating Temperature: -20°C to 65°C

CO2 Sensor

  • Technology: NDIR (Non-Dispersive Infrared)
  • Measurement Range: 400 ppm to 5000 ppm (extendable to 10000 ppm)
  • Accuracy: ±(50 ppm + 3% of reading)
  • Operating Conditions: 0–50°C, 0–85% RH (non-condensing)
  • Pressure Compensation: Supported

Temperature Sensor

  • Range: -20°C to 65°C
  • Accuracy: ±1.0°C (0–65°C)
  • Resolution: 0.01°C

Humidity Sensor

  • Range: 0–99.9% RH
  • Accuracy: ±3% RH (20–80% RH)
  • Resolution: 0.008% RH
  • Long-Term Stability: 0.5% RH/year

Air Pressure Sensor

  • Range: 300–1100 hPa
  • Accuracy: ±1.0 hPa (0–65°C)
  • Resolution: 0.18 Pa
  • Long-Term Stability: ±1.0 hPa/year

LoRa Specifications

  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency Range (HF Band): 862–1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm

Power Consumption

  • Sleep Mode: 6µA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Mechanical

  • Device Size: 110 x 70 x 30 mm
  • Device Weight: 130 g

Package Includes

  • 1 × Dragino AQS01-L LoRaWAN® CO2 Sensor

The Dragino AQS01-L LoRaWAN® CO2 Sensor is suitable for:

  • Industrial automation and indoor air monitoring
  • Commercial infrastructure and smart buildings
  • Schools, classrooms, and children rooms
  • Offices and corporate spaces
  • Supermarkets and retail stores
  • Wine cellars and storage areas
  • Gyms and fitness centers
  • Utilities and institutional campuses
  • Manufacturing control rooms
  • Cold chain and environmental compliance areas

Its long-range LoRaWAN® capability enables centralized air quality monitoring across multi-floor buildings and distributed facilities in India.

You can purchase the genuine Dragino AQS01-L LoRaWAN® Air Quality Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering PAN-India shipping and institutional supply support.

Yes, the AQS01-L supports LoRaWAN® 1.0.3 Class A protocol and IN865 band compatibility, making it suitable for integration with standard LoRaWAN® gateways deployed across India for smart building and industrial IoT networks.

The Dragino AQS01-L measures CO2 (NDIR-based), temperature, relative humidity, and air pressure. It also supports CO2 alarm, temperature alarm, Bluetooth configuration, OTA firmware updates, and datalog functionality for advanced indoor air quality monitoring.

Documents

AQS01-L_User_Manual

Download

AQS01-L_Datasheet

Download

AQS01-L_FIRMWARE

Download
