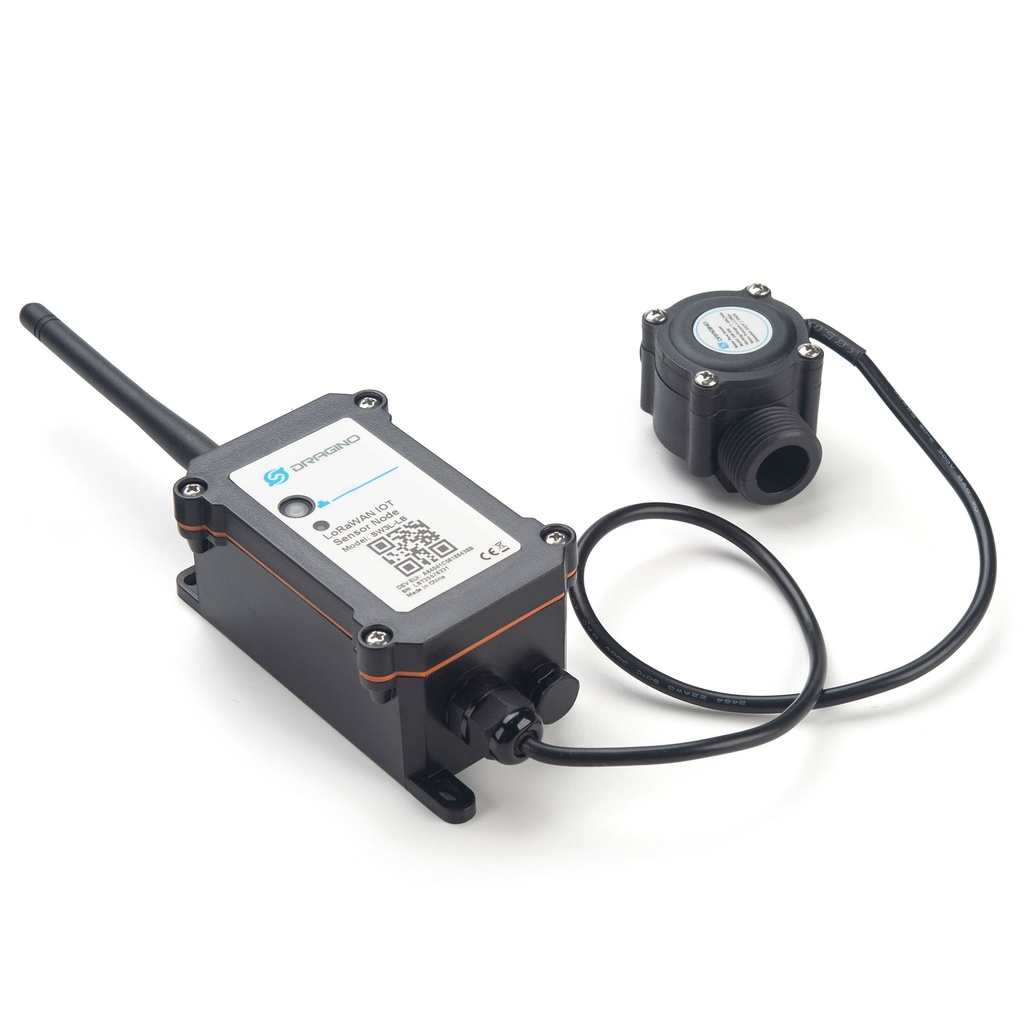

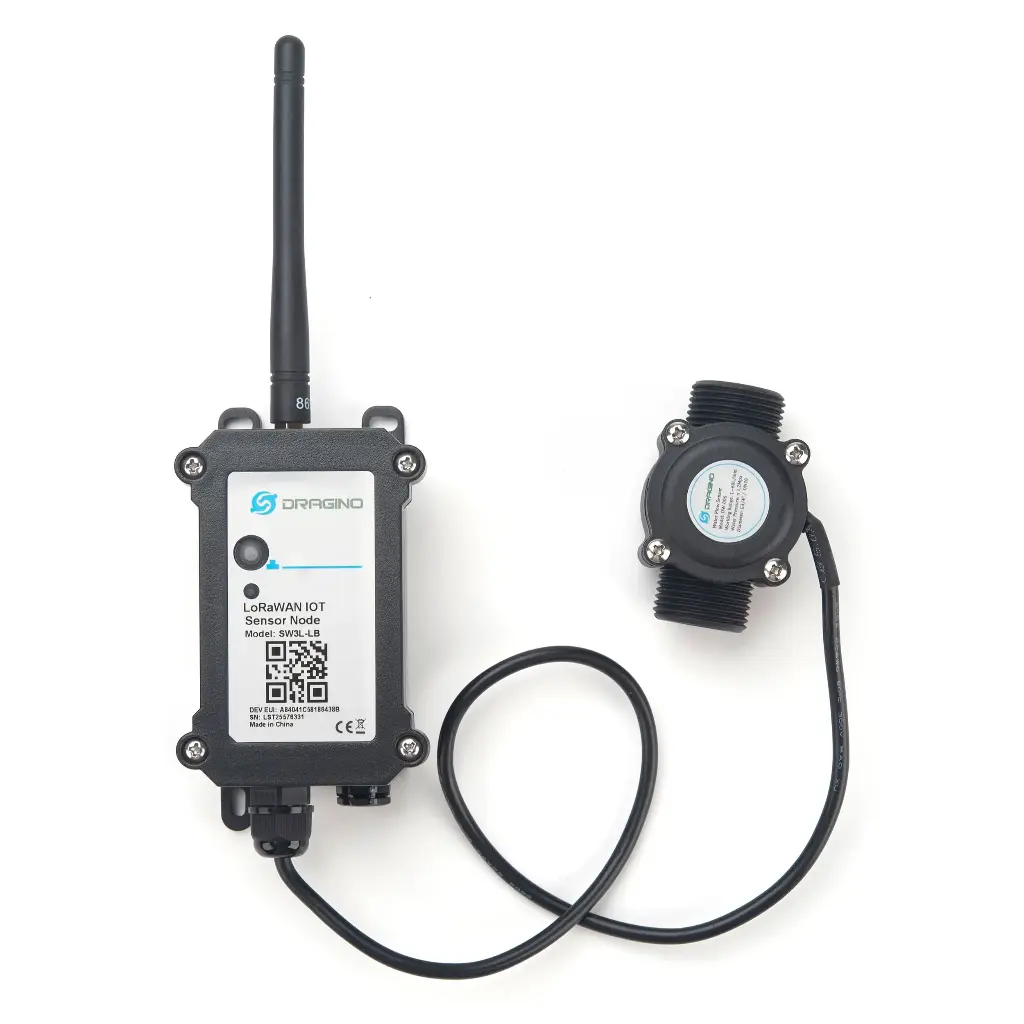

[SW3L-LB-006] LoRaWAN Flow Sensor

The Dragino SW3L-LB is a LoRaWAN Flow Sensor. It detects water flow volume and uplink to IoT server via LoRaWAN network. User can use this to monitor the water usage for buildings.

The SW3L-LB will send water flow volume every 20 minutes. It can also detect the water flow status and send Alarm, to avoid the waste for water usage such as broken toilet case.

SW3L-LB is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.

The LoRa wireless technology used in SW3L-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

SW3L-LB supports BLE configure and wireless OTA update which make user easy to use.

SW3L-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long term use up to 5 years.

Each SW3L-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

DW-006 Flow Sensor: diameter: G3/4” / DN20. 390 pulse = 1 L

USER MANUAL :

SW3L-LB_User_Manual

DATA SHEET :

SW31-LB_Datasheet

FIRMWARE :

SW31-LB_Firmware
