SDI-12-LB SDI12 to LoRaWAN® Converter

https://www.aiotkart.com/web/image/product.template/17763/image_1920?unique=5cadd16

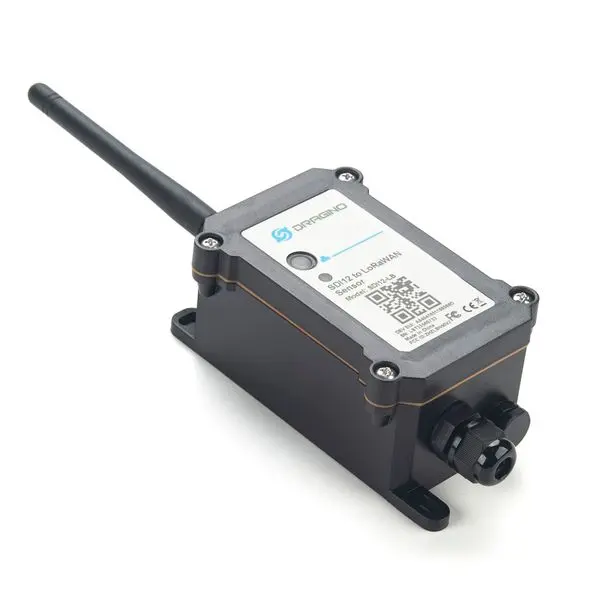

The Dragino SDI-12-LB SDI-12 to LoRaWAN® Converter is a robust industrial LoRa / LoRaWAN® interface device designed for Smart Agriculture and environmental monitoring applications across India. The SDI-12-LB enables seamless integration of SDI-12 sensors—commonly used in weather stations and agricultural monitoring systems—into LoRaWAN® networks for long-range, low-power data transmission. With built-in 12V and 5V controllable outputs, it can power external SDI-12 sensors and transmit collected environmental data securely to IoT servers. Supporting LoRaWAN® 1.0.3 Class A protocol and multi-band operation including IN865, this converter is ideal for agriculture, utilities, infrastructure, and institutional projects. As an Authorized Dragino Distributor in India, AIoTkart® supplies genuine SDI-12-LB converters with PAN-India delivery and technical support for scalable LPWAN deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • SDI-12 to LoRaWAN® Converter
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports SDI-12 protocol sensors
  • Controllable 5V and 12V outputs for external sensors
  • Ultra-low power consumption design
  • Long-range LoRa wireless communication
  • Battery level monitoring
  • BLE configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Pre-loaded unique LoRaWAN® OTAA keys
  • Multi-band support including IN865

Microcontroller

  • MCU: 48 MHz ARM
  • Flash: 256 KB
  • RAM: 64 KB

Electrical

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Supported Output Current: 5V 300mA, 12V 100mA
  • Operating Temperature: -40°C to +85°C

LoRaWAN® RF Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Regional Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Measurement Capability

Current Input Measuring:

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring:

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery (SDI-12-LB)

  • Type: Li/SOCl2 (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 195 x 125 x 55 mm
  • Device Weight: 420 g

Package Includes

  • 1 x SDI-12-LB SDI-12 to LoRaWAN® Converter

The Dragino SDI-12-LB SDI-12 to LoRaWAN® Converter is suitable for:

  • Smart agriculture and precision farming
  • Industrial automation and remote monitoring
  • Water systems and irrigation control
  • Cold chain environmental tracking
  • Manufacturing and environmental data acquisition
  • Utility infrastructure monitoring
  • Smart infrastructure and municipal projects
  • Campuses and agricultural research institutions

You can purchase the genuine Dragino SDI-12-LB SDI-12 to LoRaWAN® Converter from AIoTkart®, the authorized Dragino distributor in India with nationwide delivery and technical support.

Yes, the SDI-12-LB supports SDI-12 protocol sensors widely used in agriculture and weather stations, enabling long-range LoRaWAN® connectivity for smart farming deployments across India.

The SDI-12-LB uses an 8500mAh Li/SOCl2 battery designed for multi-year operation. A solar-powered variant (SDI-12-LS) is also available for long-term outdoor installations.

Documents

SDI-12-LB_User_Manual

Download

SDI-12-LB_Datasheet

Download

SDI_12-LB_Firmware

Download
