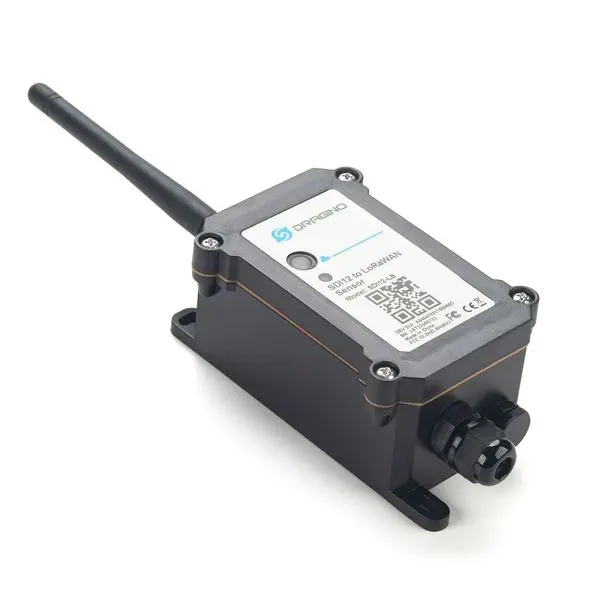

SDI-12-LB SDI12 to LoRaWAN Converter
4 Units sold in last 24 hours
The Dragino SDI-12-LB is a LoRaWAN® SDI-12 to wireless converter designed for smart agriculture and environmental monitoring applications. It connects SDI-12 sensors (commonly used in weather stations and soil monitoring) and transmits collected data to an IoT server over long-range, low-power LoRaWAN networks. The device also provides regulated power output to external SDI-12 sensors, enabling reliable field deployments.
Key Specifications
Protocol: LoRaWAN v1.0.3 Class A
Interface: SDI-12 (1200 baud)
Sensor Power Output: 5V (300 mA), 12V (100 mA)
Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
Configuration: BLE & LoRaWAN remote configuration
Firmware: Wireless OTA update
Battery: 8500mAh Li-SOCl₂ (non-rechargeable)
Battery Life: Up to 5 years (typical)
Operating Temperature: –40 °C to +85 °C
Enclosure: Industrial outdoor design
Device Size: 19.5 × 12.5 × 5.5 cm
Device Weight: 0.42 kg
Applications
Smart agriculture, weather stations, soil and environmental monitoring, and SDI-12 sensor integration for remote field deployments.
USER MANUAL:
DATA SHEET:
FIRMWARE:
