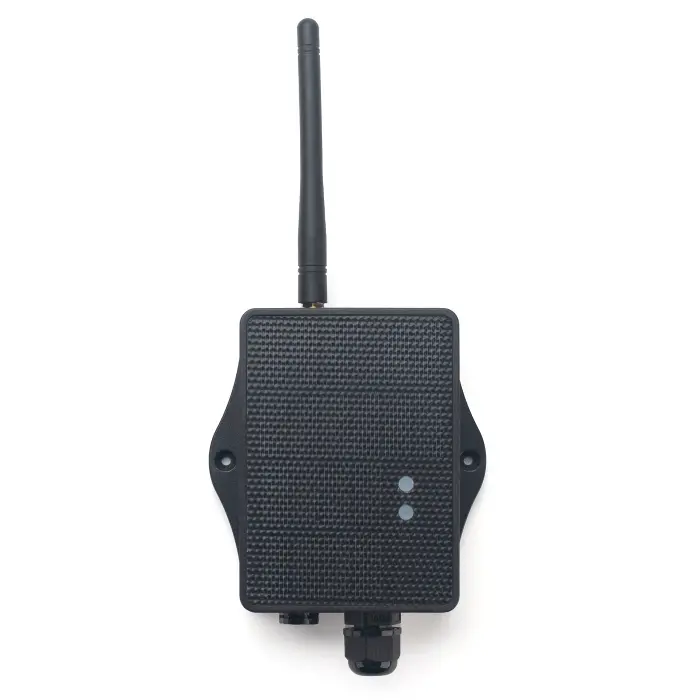

PS-LS-NA LoRaWAN Analog Sensor (0~20mA, 0~ 30V sensor Interface - Without Sensor)

The Dragino PS-LS-NA is a LoRaWAN analog data acquisition sensor designed to interface with external industrial analog sensors. It supports 0–20mA and 0–30V inputs and converts analog signals into LoRaWAN wireless data for transmission to an IoT platform. Powered by a solar panel with Li-ion battery, it is optimized for long-term, low-maintenance deployments in remote and outdoor environments.

Key Specifications

• LoRaWAN v1.0.3 Class A

• Analog inputs: 1 × 0–20mA, 1 × 0–30V

• Sensor power output: 5V and 12V (to power external sensors)

• Power supply: Solar panel + 3000mAh Li-ion battery

• Operating temperature: –40 °C to +85 °C

• RF output power: +22 dBm

• Receiver sensitivity: –139 dBm

• Supported bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Configuration: Bluetooth v5.1 & LoRaWAN downlink

• Firmware update: Wireless OTA

• Ultra-low power consumption for multi-year operation

Applications

Industrial analog sensor integration, pressure and flow monitoring, level sensors, environmental monitoring, smart agriculture instrumentation, and remote industrial data acquisition systems.

USER MANUAL:

PS-LS-NA_User_Manual

DATA SHEET:

PS-LS-NA_Datasheet

FIRMWARE:

PS-LS-NA_Firmware
