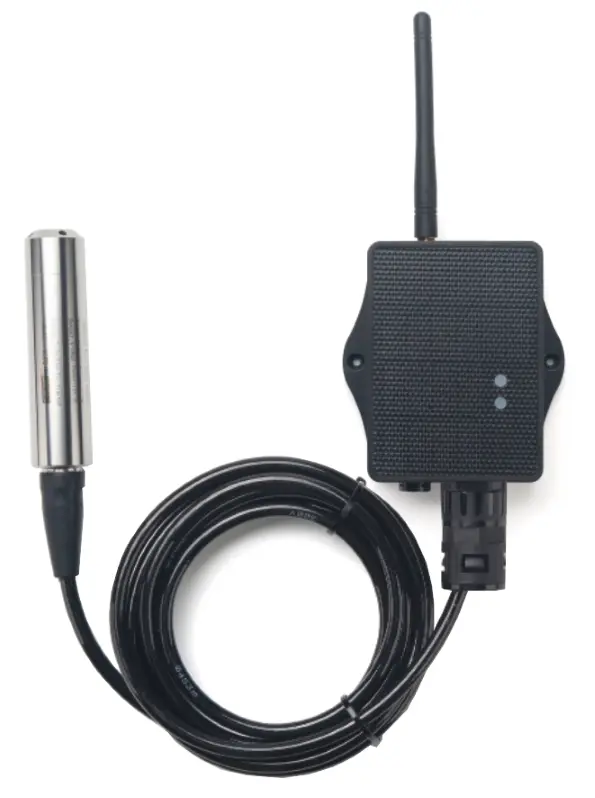

[PS-LS-I100] LoRaWAN Water / Liquid Pressure Sensor

The Dragino PS-LS-I100 series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LS-I100 can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

The PS-LS-I100 series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.

The LoRa wireless technology used in PS-LS-I100 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

PS-LS-I100 supports BLE configure and wireless OTA update which make user easy to use.

PS-LS-I100 is powered by solar powered + Li-ion battery , it is designed for long term use up to 5 years.

Each PS-LS-I100 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

USER MANUAL :

PS-LS_User_Manual

DATA SHEET :

PS-LS_Datasheet

FIRMWARE :

PS-LS_Firmware
