MDS120-LS LoRaWAN® Microwave Radar Sensor

https://www.aiotkart.com/web/image/product.template/17719/image_1920?unique=389a18b

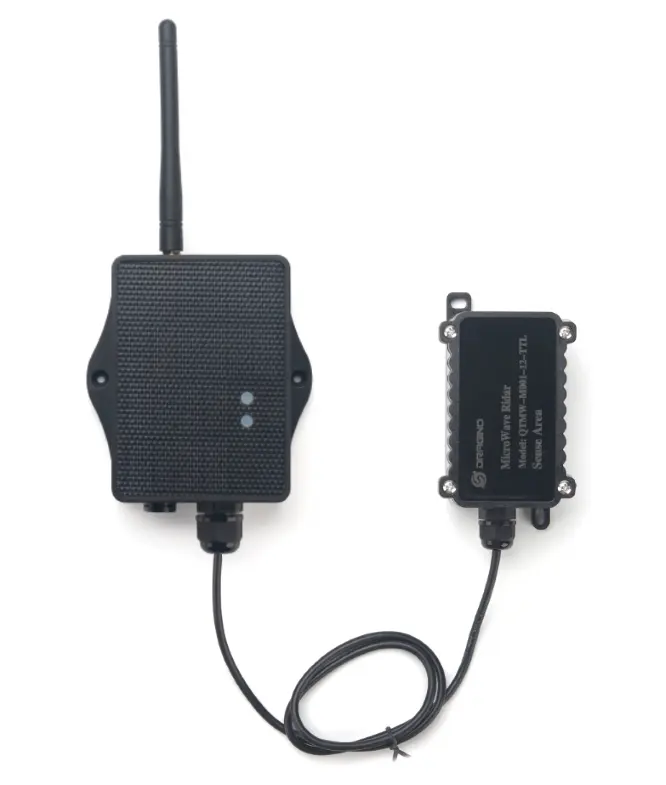

The Dragino MDS120-LS LoRaWAN® Microwave Radar Sensor is a solar-powered industrial distance measurement device designed for reliable operation in harsh outdoor environments. As an Authorized Dragino Distributor in India, AIoTkart® supplies the MDS120-LS for smart infrastructure, water level monitoring, sewer systems, and industrial automation projects requiring long-term LoRaWAN® connectivity without frequent battery replacement.

Unlike ultrasonic or LiDAR sensors, the MDS120-LS uses 60GHz FMCW microwave radar technology, making it highly reliable in condensation, humid, and dusty environments. It continues to measure accurately even when water droplets or thick dust are present on the sensor surface, making it ideal for Indian field deployments such as sewers, tanks, and outdoor installations.

The solar panel combined with a 3000mAh Li-ion battery enables long-term autonomous operation, reducing maintenance costs and ensuring sustainable IoT deployment.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 60GHz FMCW Microwave Radar distance detection
  • Measurement range: 15cm to 1200cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1cm
  • Measurement angle: 25° horizontal, 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • Built-in solar panel + 3000mAh Li-ion battery (MDS120-LS variant)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865 and global ISM bands

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Designed for long-term outdoor deployment

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 60 GHz
  • Measurement Range: 15 – 1200 cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1 cm
  • Measurement Angle: 25° (H) × 23° (V)
  • Suitable for humid and dusty environments

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865, EU868, US915, AS923, AU915, EU433, CN470, KR920
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (MDS120-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Designed for long-term autonomous operation
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS120-LS LoRaWAN® Microwave Radar Sensor is widely used in India for:

  • Water tank and liquid level monitoring
  • Sewer and bottom water level monitoring
  • Industrial automation and process monitoring
  • Parking management systems
  • Object proximity and presence detection
  • Smart waste bin monitoring
  • Robotics and obstacle avoidance
  • Utility and smart city infrastructure
  • Outdoor infrastructure monitoring

You can purchase the Dragino MDS120-LS LoRaWAN® Microwave Radar Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide shipping and enterprise-level support.

Its 60GHz microwave radar technology ensures accurate distance measurement even in condensation, humid, or dusty conditions where ultrasonic or LiDAR sensors may fail.

The MDS120-LB uses an 8500mAh Li-SOCl₂ battery, while the MDS120-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for long-term, maintenance-free outdoor operation.

Documents

MDS120-LS_User_Manual

Download

MDS120-LS_Datasheet

Download

MDS120-LS_Firmware

Download
