LTS5 LoRa / LoRaWAN® HMI Touch Screen

https://www.aiotkart.com/web/image/product.template/17716/image_1920?unique=aa6a46f

The Dragino LTS5 LoRa / LoRaWAN® HMI Touch Screen is a 5.0-inch smart IoT display panel designed for industrial and building automation applications. Powered by an ESP32-WROOM MCU and the Dragino LA66 LoRa module, LTS5 supports LoRa, LoRaWAN®, WiFi, and Bluetooth connectivity for seamless IoT integration.

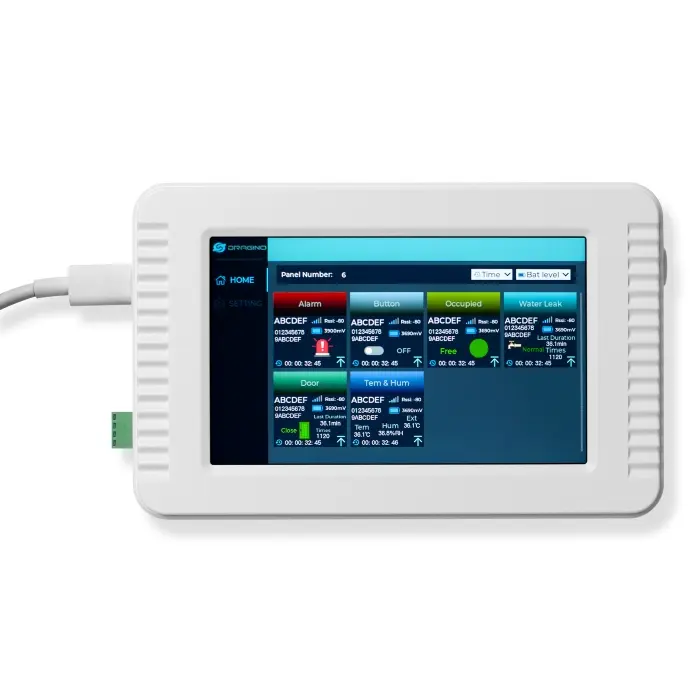

LTS5 features an 800 × 480 IPS capacitive touch display with RGB color support, making it ideal for dashboards, control panels, and IoT visualization systems. Developers can use SquareLine Studio with LVGL (Light and Versatile Graphics Library) for easy drag-and-drop UI design, significantly reducing development time.

The built-in LA66 LoRa Module can be configured for private LoRa protocol or LoRaWAN® protocol, offering flexibility for both public and private LPWAN deployments. With open-source support and Arduino-compatible ESP32 development resources, LTS5 is suitable for custom IoT HMI projects across industries.

AIoTkart supplies genuine Dragino LTS5 HMI Touch Screens in India with technical consultation for LoRaWAN® and IoT system integration.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • 5.0" IPS Capacitive HMI Touch Screen (800 × 480)
  • ESP32-WROOM MCU (8MB RAM & 16MB ROM)
  • Dragino LA66 LoRa Module
  • Supports LoRa and LoRaWAN® protocol
  • WiFi (802.11 b/g/n) and Bluetooth 4.2 support
  • LVGL compatible with SquareLine drag-and-drop UI design
  • RS485 interface support

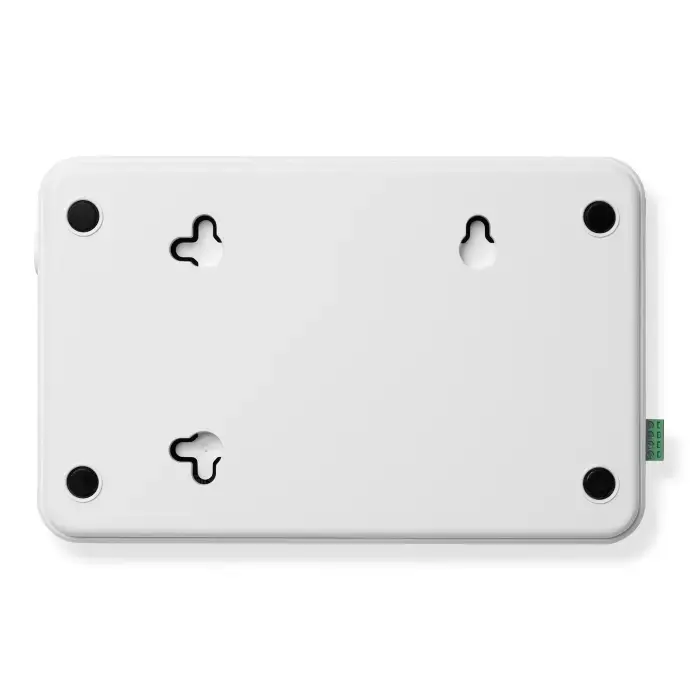

  • Wall-mountable design
  • 5V DC powered
  • IP52 rated enclosure
  • Open-source platform
  • Industrial operating temperature range

LoRa

  • Frequency Range: 870 MHz ~ 960 MHz
  • Maximum RF Output: +22 dBm
  • Sensitivity: -148 dBm
  • TX Current: <90 mA @ +17 dBm, 108 mA @ +22 dBm
  • RX Current: <9 mA
  • TCXO crystal for stable RF performance

WiFi

  • Standard: 802.11 b/g/n
  • Data Rate: Up to 150 Mbps (802.11n)
  • Frequency Range: 2412 ~ 2484 MHz
  • Supports A-MPDU & A-MSDU aggregation

Bluetooth

  • Bluetooth v4.2 BR/EDR and BLE
  • Class 1, 2, and 3 transmitters
  • AFH support
  • CVSD and SBC audio

Display

  • Size: 5.0 inch
  • Resolution: 800 × 480
  • Type: IPS Capacitive Touch Screen
  • Display Area: 120.7 × 75.8 mm
  • RGB color support

Electrical & Environmental

  • Power Supply: 5V DC
  • IP Rating: IP52
  • Operating Temperature: -20°C to 70°C (No Dew)
  • Storage Temperature: -30°C to 70°C (No Dew)

The Dragino LTS5 HMI Touch Screen is suitable for:

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering Systems
  • Smart Agriculture
  • Smart Cities Infrastructure
  • Smart Factory Automation
  • Industrial IoT dashboards
  • Energy monitoring systems

Yes. The integrated LA66 module can be configured for either private LoRa protocol or standard LoRaWAN deployments.

Yes. LTS5 supports LVGL and SquareLine Studio, enabling drag-and-drop UI development for customized IoT dashboards.

Yes. With IP52 protection and an operating range of -20°C to 70°C, LTS5 is designed for industrial and smart infrastructure applications.

Documents

LTS5_User_Manual

Download

LTS5_Datasheet

Download
