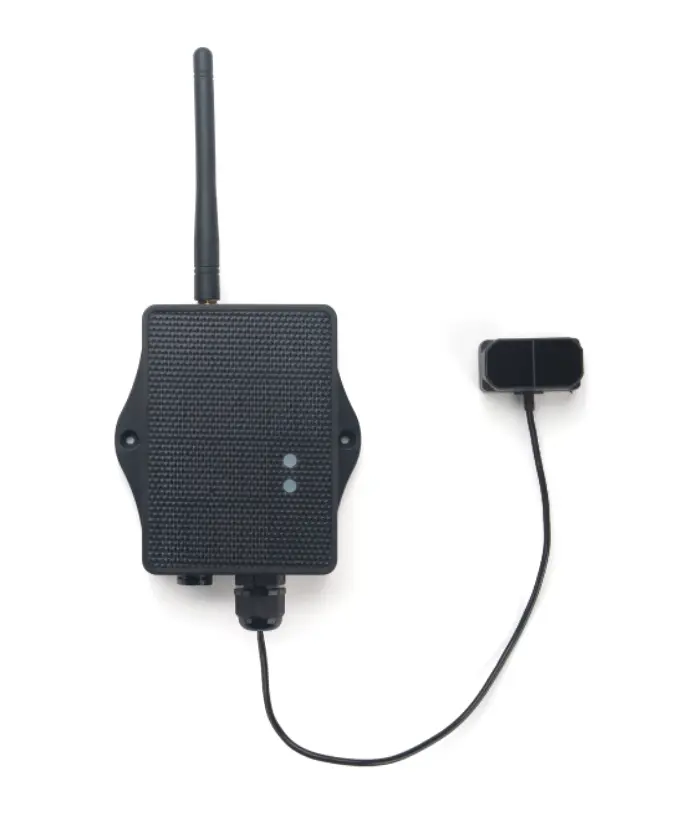

[LDS12-LS] LoRaWAN LiDAR ToF Distance Detection Sensor

The Dragino LDS12-LS is a LoRaWAN LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solution. It is capable to measure the distance to an object as close as 10 centimeters (+/- 5cm up to 6m) and as far as 12 meters (+/-1% starting at 6m)!. The LiDAR probe uses laser induction technology for distance measurement.

The LDS12-LS can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in LDS12-LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LDS12-LS supports BLE configure and wireless OTA update which make user easy to use.

LDS12-LS is powered by solar powered + Li-ion battery , it is designed for long term use up to 5 years.

Each LDS12-LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

USER MANUAL :

LDS12-LS_User_Manual

DATASHEET :

LDS12-LS_Datasheet

FIRMWARE :

LDS12-LS_Firmware
