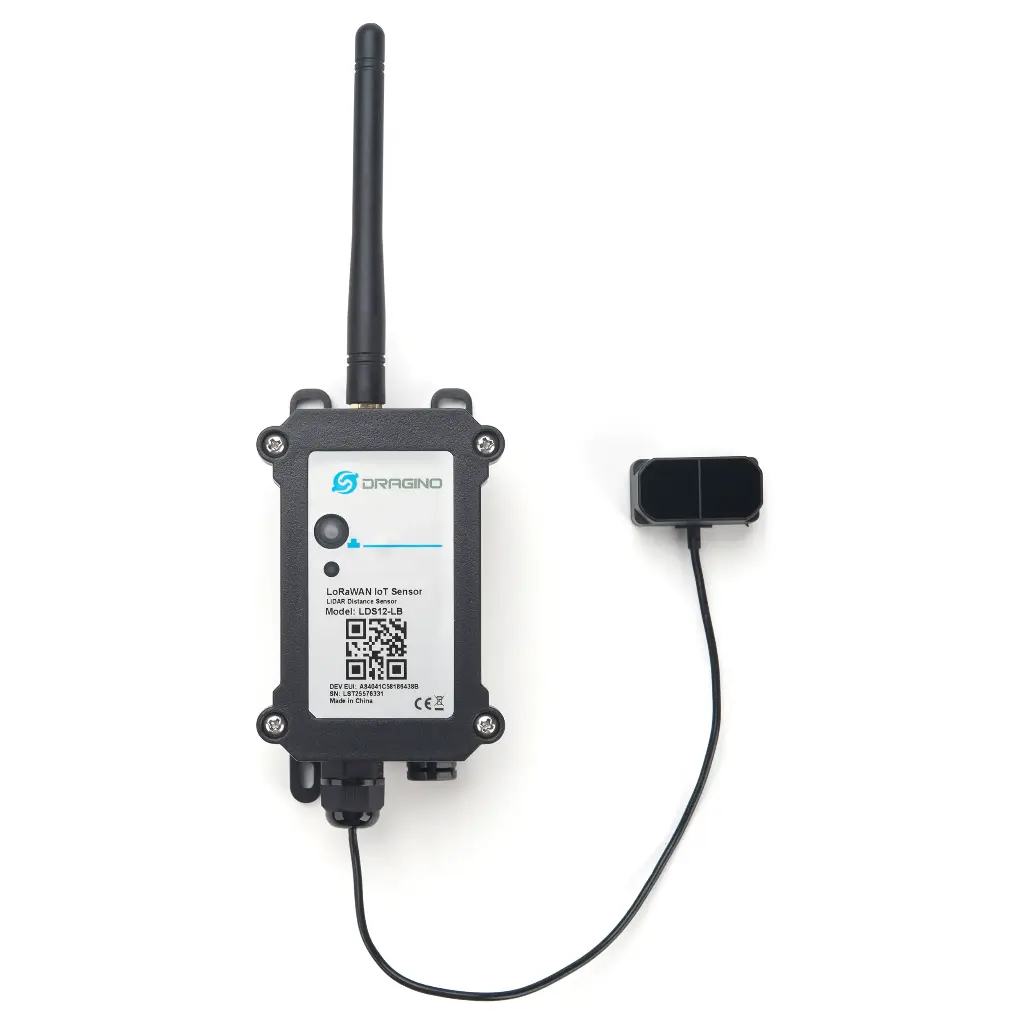

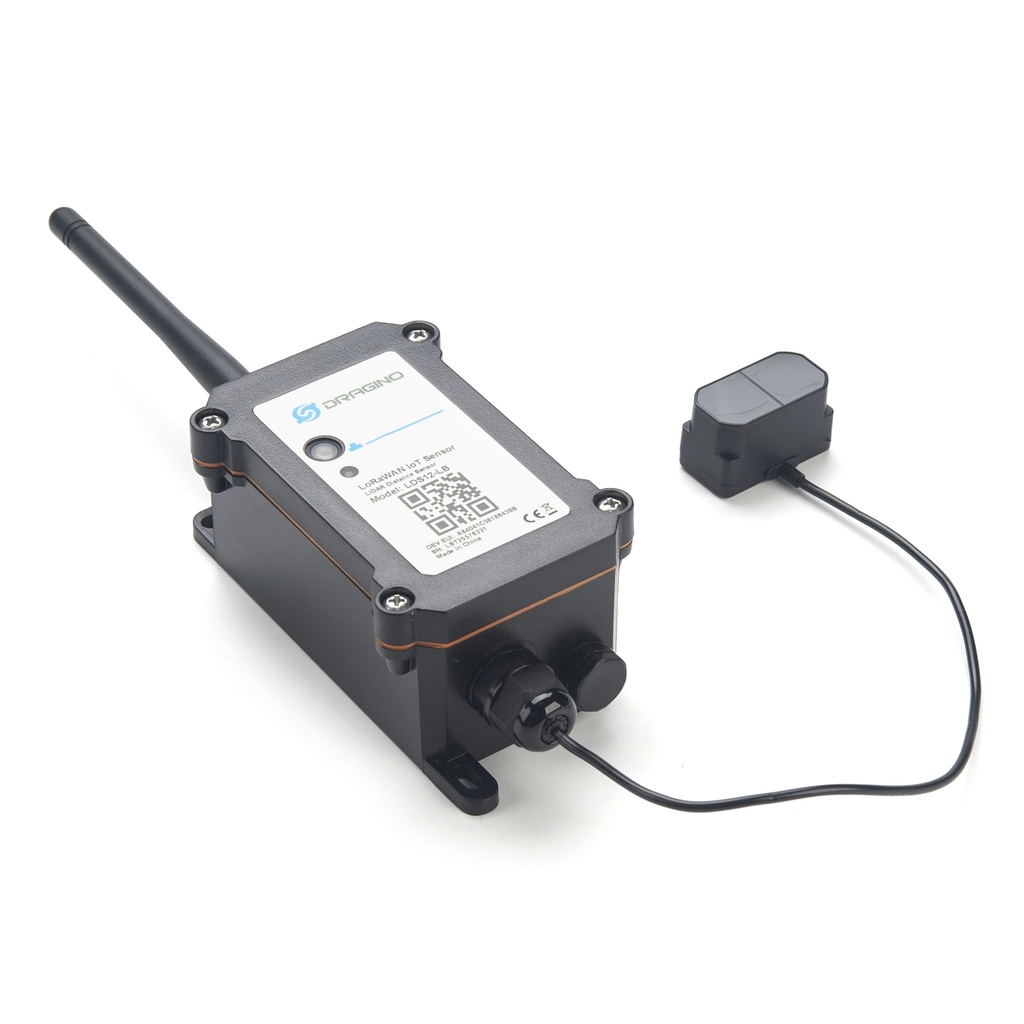

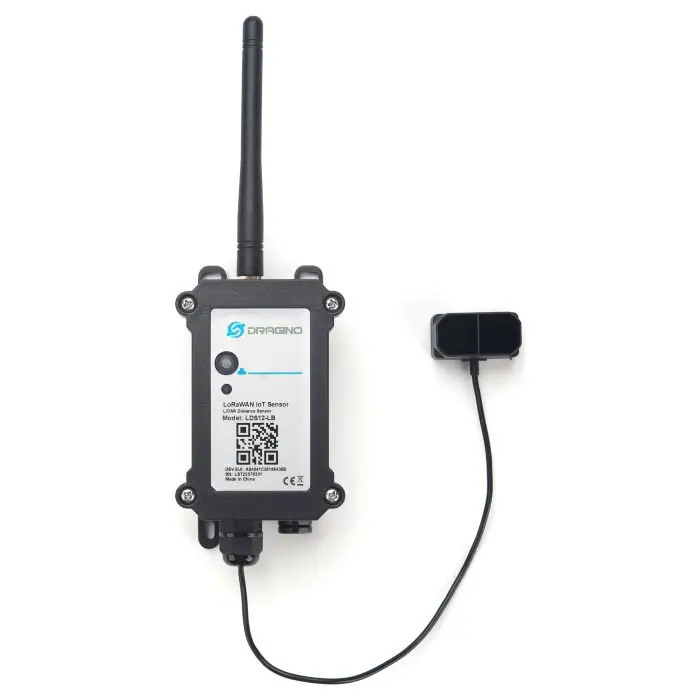

LDS12-LB LoRaWAN® LiDAR ToF Distance Detection Sensor

https://www.aiotkart.com/web/image/product.template/17685/image_1920?unique=62eb40e

The Dragino LDS12-LB LoRaWAN LiDAR ToF Distance Detection Sensor is an industrial-grade laser-based distance measurement solution designed for long-range, high-accuracy IoT deployments across India. As an Authorized Dragino Distributor in India, AIoTkart® supplies the LDS12-LB for industrial automation, smart parking systems, sewer monitoring, and infrastructure distance sensing applications over LoRaWAN® networks. Using advanced LiDAR Time-of-Flight (ToF) laser technology, the sensor measures distances from 0.1 meters up to 12 meters with high precision and strong ambient light immunity. With ultra-low power consumption, IP65 enclosure, and up to 5 years of battery life, the Dragino LDS12-LB is ideal for smart cities, utilities, manufacturing plants, commercial facilities, and institutional infrastructure requiring reliable long-range wireless monitoring.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • LiDAR ToF (Time-of-Flight) laser distance measurement
  • Measurement range: 0.1m to 12m
  • Accuracy: ±5cm (0.1–5m), ±1% (5–12m)
  • Distance resolution: 1cm
  • FOV: 3.6° narrow beam detection
  • Strong ambient light immunity up to 70klux
  • Ultra-low power consumption design
  • BLE v5.1 local configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update support
  • AT command configuration
  • Battery level monitoring
  • IP65 industrial enclosure
  • 8500mAh Li-SOCl₂ battery (LDS12-LB variant)
  • Solar + 3000mAh Li-ion option (LDS12-LS variant)
  • Pre-loaded LoRaWAN® keys for fast deployment
  • Supports IN865 and global ISM bands

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature (Device): -40°C to +85°C
  • Operating Temperature (Probe): -20°C to +60°C
  • Storage Temperature: -20°C to +75°C
  • Enclosure Rating: IP65
  • Enclosure Material: ABS + PC
  • Dimensions: 150 × 120 × 55 mm
  • Weight: 220 g
  • Wire Length: 25 cm

LiDAR Probe Specifications

  • Technology: Laser Induction (ToF)
  • Measurement Distance:
    • 0.1m – 12m @ 90% reflectivity
    • 0.1m – 4m @ 10% reflectivity
  • Accuracy:
    • ±5cm @ 0.1–5m
    • ±1% @ 5–12m
  • Distance Resolution: 1 cm
  • Ambient Light Immunity: 70klux
  • Light Source: LED
  • Central Wavelength: 850nm
  • Field of View: 3.6°

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865, EU868, US915, AS923, AU915, EU433, CN470, KR920
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications

Battery (LDS12-LB):

  • Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption:

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino LDS12-LB LoRaWAN® LiDAR Distance Sensor is widely deployed in India for:

  • Industrial automation and process monitoring
  • Commercial infrastructure and smart building systems
  • Water systems and sewer monitoring
  • Cold chain storage and warehouse monitoring
  • Manufacturing plants and robotics
  • Utility and smart city projects
  • Parking management systems
  • Intelligent waste bin monitoring
  • Campuses, logistics hubs, and institutional facilities

You can purchase the Dragino LDS12-LB LoRaWAN® LiDAR ToF Distance Sensor directly from AIoTkart®, an Authorized Dragino Distributor in India offering genuine products, bulk pricing, and nationwide delivery.

Yes, the LDS12-LB supports the IN865 frequency band and is fully compatible with LoRaWAN® networks deployed across India for industrial and commercial IoT applications.

The LDS12-LB can measure up to 12 meters at high reflectivity surfaces, with ±1% accuracy beyond 5 meters, making it suitable for industrial distance monitoring and infrastructure applications.
