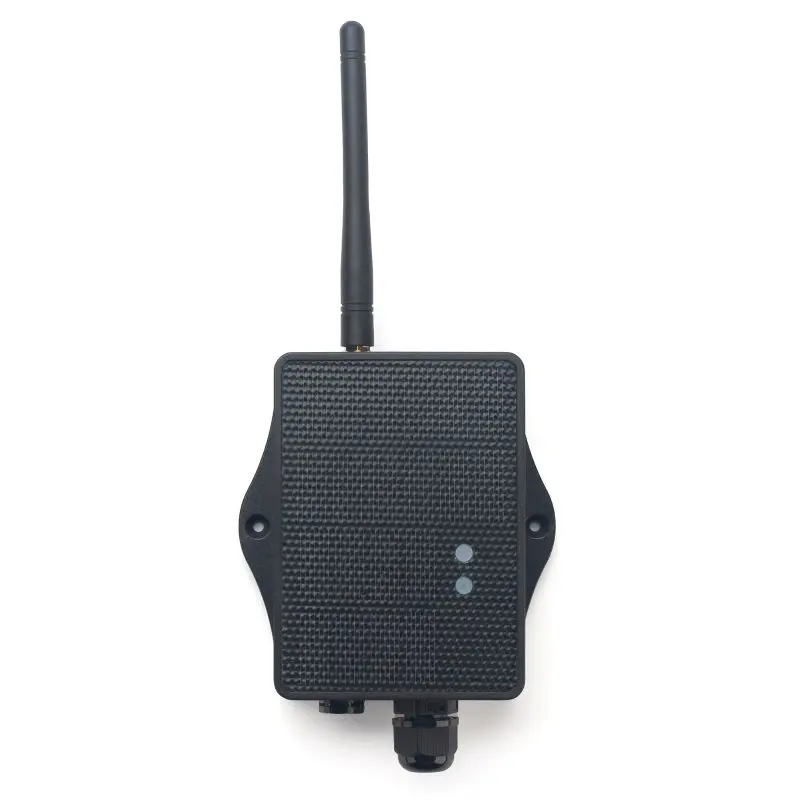

SDI-12-LS SDI12 to LoRaWAN® Converter

https://www.aiotkart.com/web/image/product.template/17764/image_1920?unique=8ae2913

The Dragino SDI-12-LB/LS is an industrial SDI-12 to LoRaWAN® Converter designed for Smart Agriculture and environmental monitoring deployments across India. This device enables seamless integration of SDI-12 sensors with LoRaWAN® networks, allowing long-range wireless transmission of environmental data from agriculture fields, weather stations, and water monitoring systems. Equipped with 5V and 12V sensor power outputs, the SDI-12-LB/LS can directly power external SDI-12 sensors and transmit data via LoRaWAN® 1.0.3 Class A protocol. Available in battery-powered (8500mAh Li-SOCI2) or solar-powered variants, it supports up to 5 years of long-term field operation. With ultra-low power consumption and remote configuration via BLE and LoRaWAN®, this converter is ideal for agricultural automation in India. AIoTkart® is an Authorized Dragino Distributor in India, supplying genuine SDI-12-LB/LS devices with PAN-India delivery and deployment support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino SDI-12-LB/LS SDI-12 to LoRaWAN® Converter
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports SDI-12 environmental sensors
  • Controllable 5V and 12V output for sensor power
  • Ultra-low power design for long-term deployment
  • 8500mAh Li-SOCI2 battery (LB version)
  • Solar panel + 3000mAh Li-ion battery (LS version)
  • Wireless BLE and LoRaWAN® remote configuration
  • OTA firmware upgrade support
  • Periodic uplink and configurable downlink
  • Battery level monitoring
  • Supports IN865 and global LoRaWAN® bands

Microcontroller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery)
  • Support Current Output: 5V 300mA, 12V 100mA
  • Operating Temperature: -40°C to 85°C

LoRaWAN® Performance

  • Frequency Band: 862 ~ 1020 MHz (Region dependent including IN865)
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Current Measurement

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Measurement

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery Specifications (LB Version)

  • Type: Li-SOCI2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode:
    • 125mA @ 20dBm
    • 82mA @ 14dBm

Physical Specifications

  • Device Size: 195 × 125 × 55 mm
  • Device Weight: 420g

Package Includes

  • Dragino SDI-12-LB or SDI-12-LS Converter

The Dragino SDI-12-LB/LS LoRaWAN® Converter is ideal for agricultural and environmental IoT deployments across India, including:

  • Smart agriculture monitoring
  • Weather station integration
  • Soil moisture and environmental sensing
  • Irrigation automation systems
  • Water resource monitoring
  • Cold chain monitoring in agri storage
  • Institutional agricultural research campuses
  • Utilities and environmental infrastructure projects

You can buy the genuine Dragino SDI-12-LB/LS in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India delivery, bulk pricing, and deployment assistance for agriculture and environmental IoT projects.

Yes. The device is designed to interface with SDI-12 protocol sensors and transmit data over LoRaWAN® networks, making it ideal for smart agriculture, irrigation systems, and environmental monitoring deployments.

The SDI-12-LB version uses an 8500mAh Li-SOCI2 battery for long-term standalone deployment, while the SDI-12-LS version includes a solar panel with a 3000mAh Li-ion battery for rechargeable field operation.

Documents

 SDI-12-LS_User_Manual

Download

SDI-12-LS_Datasheet

Download

SDI-12-LS_Firmware

Download
