DLOS8N-EC25 Outdoor LoRaWAN® Gateway

https://www.aiotkart.com/web/image/product.template/17657/image_1920?unique=6364cca

The Dragino DLOS8N-EC25 is an industrial-grade Outdoor LoRaWAN® Gateway built for long-range, high-reliability IoT deployments across India. Designed with an SX1302 LoRaWAN® concentrator, the DLOS8N bridges LoRa wireless networks to IP infrastructure via Ethernet, WiFi, 3G, or 4G connectivity. Fully compatible with the LoRaWAN® protocol, it supports both Semtech UDP Packet Forwarder and LoRaWAN® Station connections, making it suitable for integration with public or private LoRaWAN® servers. With IP65-rated enclosure, PoE support, built-in GPS, and lightning protection, this gateway is ideal for harsh outdoor environments. The DLOS8N-EC25 can also directly communicate with ABP LoRaWAN® end nodes without requiring a LoRaWAN® server, enabling flexible Industrial IoT architectures. AIoTkart® is an Authorized Dragino Distributor in India, supplying genuine DLOS8N gateways with PAN-India delivery and deployment support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino DLOS8N-EC25 Outdoor LoRaWAN® Gateway
  • SX1302 + 2 × SX1250 LoRaWAN® concentrator
  • Multi-channel LoRaWAN® support
  • Supports Semtech UDP & LoRaWAN® Station
  • Direct communication with ABP LoRaWAN® nodes
  • Ethernet, WiFi, 3G & 4G connectivity
  • IEEE 802.3af PoE support
  • IP65 rated outdoor enclosure
  • Built-in GPS for timing & location
  • Lightning protection & industrial design
  • Auto-provisioning for mass deployment
  • Remote monitoring via Web GUI & SSH

LoRaWAN® Performance

  • Sensitivity: Up to -140 dBm
  • 49 LoRa demodulators + 1 (G)FSK demodulator emulation
  • 10 programmable parallel demodulation paths
  • 70 dB CW interferer rejection @ 1 MHz offset
  • Dynamic Data Rate (DDR) adaptation
  • Dual TX/RX front-end interfaces
  • Antenna diversity / dual-band operation
  • LoRa Concentrator: SX1302 + 2 × SX1250

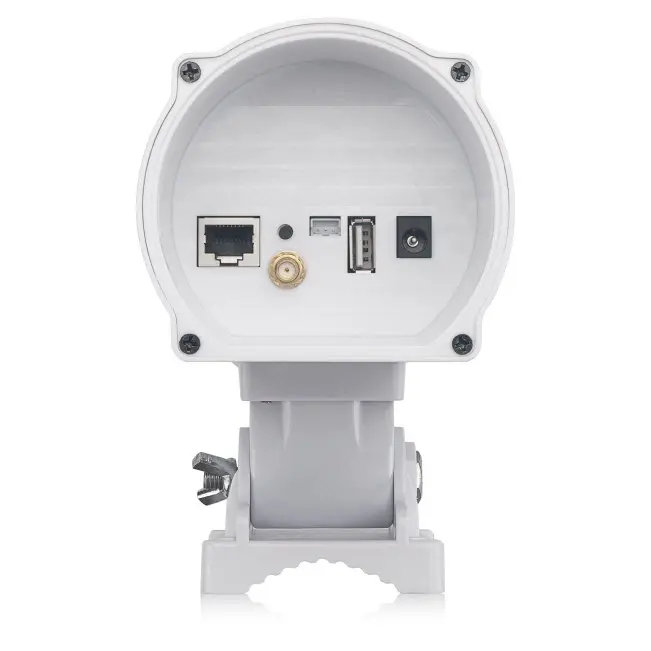

Interfaces

  • 1 × 10/100M RJ45 Ethernet Port
  • WiFi 802.11 b/g/n
  • USB 2.0 Host Port
  • Mini-PCIe Connector
  • LoRaWAN Wireless
  • External Fiber Glass Antenna

Power & Environmental

  • Power Input: 12–24V DC, 2A
  • IEEE 802.3af PoE (37–57V DC)
  • Power Consumption: 12V, 300–500mA
  • Operating Temperature: -20°C to 85°C
  • IP65 Outdoor Protection
  • Lightning Protection

Physical Specifications

  • Package Size: 490 × 120 × 190 mm
  • Net Weight: 1.7 kg
  • Volume Weight: 2.5 kg

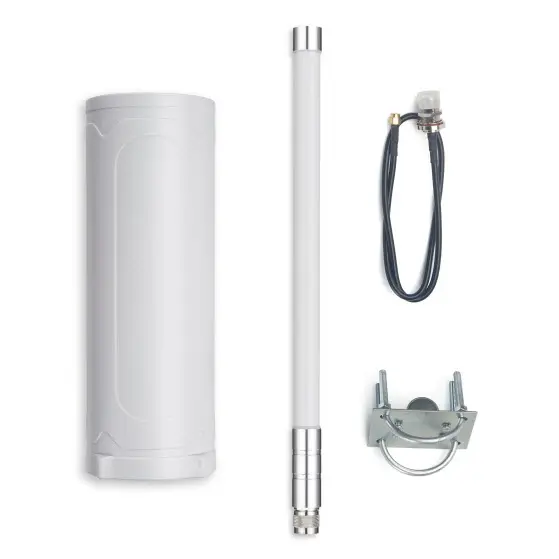

Package Includes

  • 1 × Dragino DLOS8N-EC25 Gateway
  • 1 × Fiber Glass Antenna
  • 1 × Power Adapter
  • Environmental packaging

The Dragino DLOS8N-EC25 Outdoor LoRaWAN® Gateway is suitable for large-scale outdoor Industrial IoT deployments in India, including:

  • Industrial automation and manufacturing zones
  • Commercial infrastructure and facility monitoring
  • Smart buildings and institutional campuses
  • Water management and utility networks
  • Cold chain logistics hubs
  • Smart metering infrastructure
  • Agriculture and irrigation systems
  • Smart city and public infrastructure projects
  • Logistics and supply chain monitoring

You can purchase the genuine Dragino DLOS8N-EC25 in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India shipping, bulk pricing, and technical support for Industrial IoT deployments.

Yes. With its SX1302 concentrator, IP65 enclosure, PoE support, and high sensitivity performance, the DLOS8N-EC25 is ideal for large outdoor LoRaWAN® networks across industrial zones, utilities, and smart city infrastructure.

Not necessarily. The DLOS8N-EC25 can directly communicate with ABP LoRaWAN® end nodes without a LoRaWAN® server, or it can integrate with public or private LoRaWAN® platforms using Semtech UDP or LoRaWAN® Station.
