DLOS8N Outdoor LoRaWAN® Gateway

https://www.aiotkart.com/web/image/product.template/17658/image_1920?unique=1424e13

The Dragino DLOS8N is an industrial-grade Outdoor LoRaWAN® Gateway built for long-range, high-reliability IoT deployments across India. Designed with an SX1302 LoRaWAN® concentrator, the DLOS8N bridges LoRa wireless networks to IP infrastructure via Ethernet, WiFi, connectivity. Fully compatible with the LoRaWAN protocol, it supports both Semtech UDP Packet Forwarder and LoRaWAN® Station connections, making it suitable for integration with public or private LoRaWAN® servers. With IP65-rated enclosure, PoE support, built-in GPS, and lightning protection, this gateway is ideal for harsh outdoor environments. The DLOS8N can also directly communicate with ABP LoRaWAN® end nodes without requiring a LoRaWAN® server, enabling flexible Industrial IoT architectures. AIoTkart® is an Authorized Dragino Distributor in India, supplying genuine DLOS8N gateways with PAN-India delivery and deployment support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino DLOS8N Outdoor LoRaWAN® Gateway
  • SX1302 + 2 × SX1250 LoRaWAN® concentrator
  • Multi-channel LoRaWAN® support
  • Supports Semtech UDP & LoRaWAN® Station
  • Direct communication with ABP LoRaWAN® nodes
  • Ethernet, & WiFi connectivity
  • IEEE 802.3af PoE support
  • IP65 rated outdoor enclosure
  • Built-in GPS for timing & location
  • Lightning protection & industrial design
  • Auto-provisioning for mass deployment
  • Remote monitoring via Web GUI & SSH

LoRaWAN® Performance

  • Sensitivity: Up to -140 dBm
  • 49 LoRa demodulators + 1 (G)FSK demodulator emulation
  • 10 programmable parallel demodulation paths
  • 70 dB CW interferer rejection @ 1 MHz offset
  • Dynamic Data Rate (DDR) adaptation
  • Dual TX/RX front-end interfaces
  • Antenna diversity / dual-band operation
  • LoRa Concentrator: SX1302 + 2 × SX1250

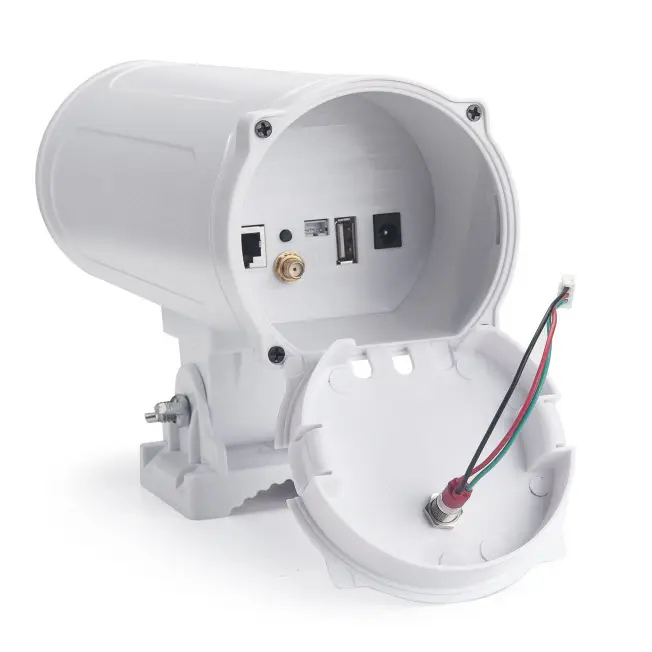

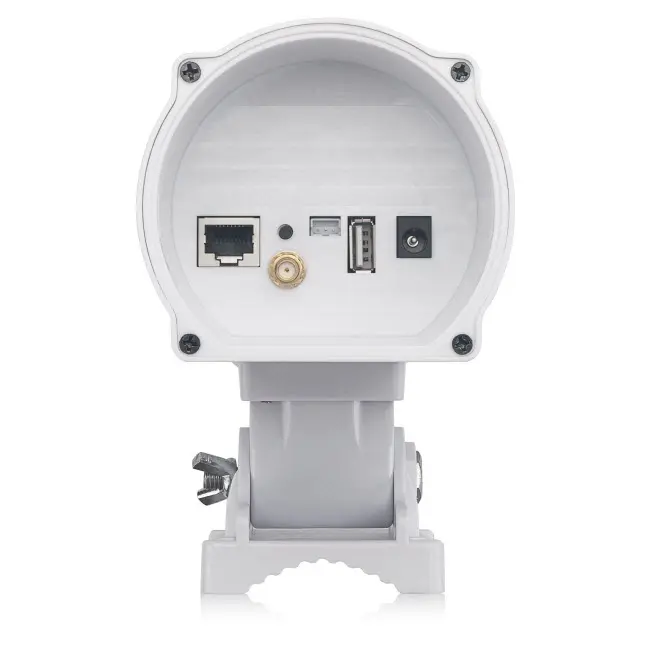

Interfaces

  • 1 × 10/100M RJ45 Ethernet Port
  • WiFi 802.11 b/g/n
  • USB 2.0 Host Port
  • Mini-PCIe Connector
  • LoRaWAN® Wireless
  • External Fiber Glass Antenna

Power & Environmental

  • Power Input: 12–24V DC, 2A
  • IEEE 802.3af PoE (37–57V DC)
  • Power Consumption: 12V, 300–500mA
  • Operating Temperature: -20°C to 85°C
  • IP65 Outdoor Protection
  • Lightning Protection

Physical Specifications

  • Package Size: 490 × 120 × 190 mm
  • Net Weight: 1.7 kg
  • Volume Weight: 2.5 kg

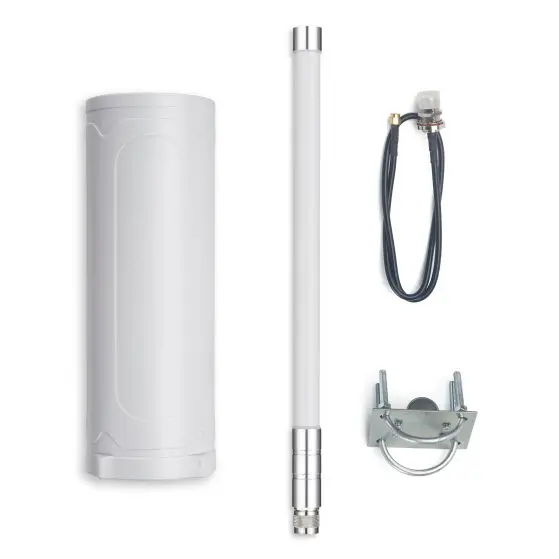

Package Includes

  • 1 × Dragino DLOS8N Gateway
  • 1 × Fiber Glass Antenna
  • 1 × Power Adapter
  • Environmental packaging

The Dragino DLOS8N Outdoor LoRaWAN® Gateway is suitable for large-scale outdoor Industrial IoT deployments in India, including:

  • Industrial automation and manufacturing zones
  • Commercial infrastructure and facility monitoring
  • Smart buildings and institutional campuses
  • Water management and utility networks
  • Cold chain logistics hubs
  • Smart metering infrastructure
  • Agriculture and irrigation systems
  • Smart city and public infrastructure projects
  • Logistics and supply chain monitoring

You can purchase the genuine Dragino DLOS8N in India from AIoTkart®, an Authorized Dragino Distributor offering PAN-India shipping, bulk pricing, and technical support for Industrial IoT deployments.

Yes. With its SX1302 concentrator, IP65 enclosure, PoE support, and high sensitivity performance, the DLOS8N is ideal for large outdoor LoRaWAN ® networks across industrial zones, utilities, and smart city infrastructure.

Not necessarily. The DLOS8N can directly communicate with ABP LoRaWAN ® end nodes without a LoRaWAN® server, or it can integrate with public or private LoRaWAN® platforms using Semtech UDP or LoRaWAN® Station.

Documents

DLOS8N_User_Manual

Download

DLOS8N_Datasheet

Download

DLOS8N_Firmware

Download
