DDS04-LS LoRaWAN® Ultrasonic 4 channels Distance Detection Sensor (Excluding Sensors)

https://www.aiotkart.com/web/image/product.template/17650/image_1920?unique=ff34c5f

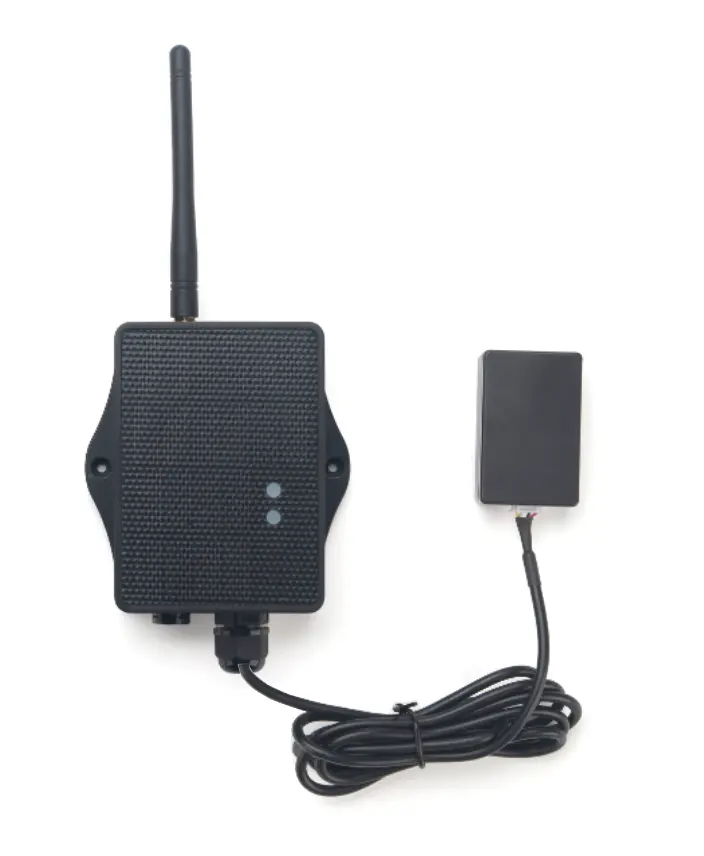

The Dragino DDS04-LS LoRaWAN® Ultrasonic 4-Channel Distance Detection Sensor is a solar-powered industrial LoRaWAN® controller designed to support up to four external ultrasonic distance sensors simultaneously. (Note: Ultrasonic sensors are not included in this package.)

As an Authorized Dragino Distributor in India, AIoTkart® supplies the DDS04-LS for multi-point distance monitoring applications such as water level monitoring, parking systems, sewer monitoring, waste management, and industrial automation projects requiring long-term, low-maintenance LoRaWAN® connectivity.

The DDS04-LS allows users to connect up to four ultrasonic probes, enabling simultaneous monitoring of four separate measurement points using a single LoRaWAN® node. It wirelessly transmits collected distance data to a LoRaWAN® IoT server over ultra-long-range LPWAN communication.

With its integrated solar panel and 3000mAh rechargeable Li-ion battery, the DDS04-LS is designed for long-term outdoor deployment with minimal maintenance requirements.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports up to 4 external ultrasonic distance sensors (not included)
  • Multi-channel distance detection via single LoRaWAN® node
  • Ultra-low power consumption
  • Integrated solar panel + 3000mAh Li-ion battery (DDS04-LS)
  • IP66 waterproof enclosure for outdoor deployment
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Downlink support for parameter changes
  • Monitor battery level
  • Pre-loaded LoRaWAN® keys for easy activation
  • Supports IN865 and global ISM bands

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Designed for long-term outdoor use

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (DDS04-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS04-LS 4-Channel LoRaWAN Distance Sensor is ideal for:

  • Multi-tank water level monitoring
  • Bottom water level monitoring
  • Sewer monitoring systems
  • Parking management systems
  • Smart waste bin monitoring (multiple bins)
  • Horizontal distance measurement
  • Object proximity and presence detection
  • Industrial automation and process control
  • Smart city infrastructure projects

No. The DDS04-LS includes only the LoRaWAN® controller unit. Ultrasonic sensors must be purchased separately.

The DDS04-LS supports up to four ultrasonic distance sensors for simultaneous multi-point monitoring.

The DDS04-LB uses an 8500mAh Li-SOCl₂ battery, while the DDS04-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for long-term outdoor operation.
