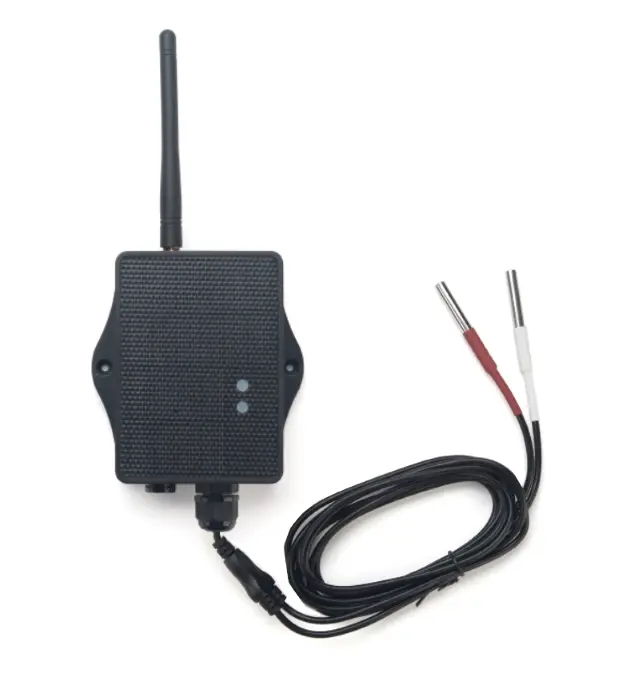

[D22-LS] Two probes LoRaWAN Waterproof /Outdoor Temperature Sensor

The Dragino D22-LS is a LoRaWAN Temperature Sensor for Internet of Things solution. D22-LS will convert the Temperature reading to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

The LoRa wireless technology used in D22-LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

The temperature sensor used in D22-LS can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).

D22-LS supports temperature alarm feature, user can set temperature alarm for instant notice. D22-LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.

D22-LS supports BLE configure and wireless OTA update which make user easy to use.

D22-LS is powered by solar powered + Li-ion battery, it is designed for long term use up to 5 years.

Each D22-LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

USER MANUAL :

D22-LS_User_Manual

DATASHEET :

D22-LS_Datasheet

FIRMWARE :

D22-LS_Firmware
