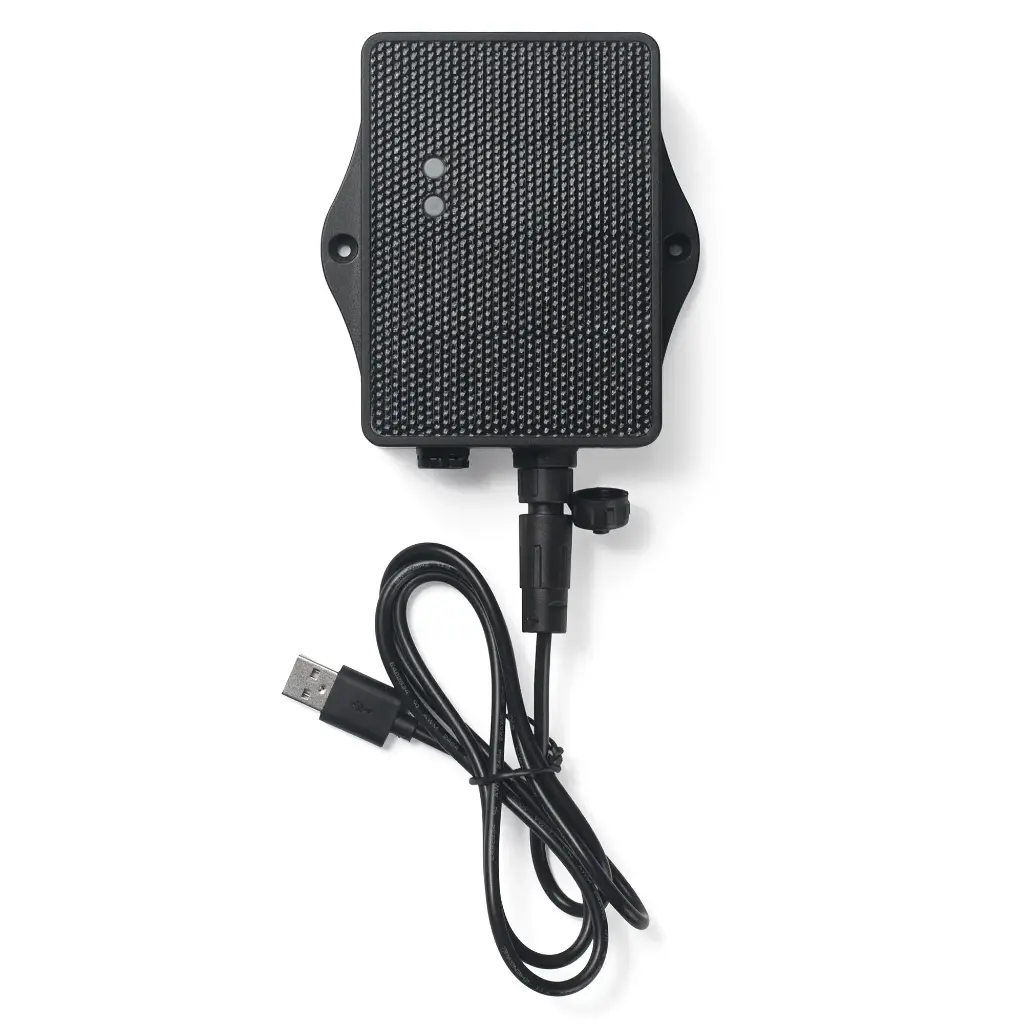

TrackerD-LS LoRaWAN® Tracker

https://www.aiotkart.com/web/image/product.template/17787/image_1920?unique=d984f45

The Dragino TrackerD-LS LoRaWAN® Tracker is an open-source solar-powered GPS asset tracker designed for long-term Industrial IoT deployments. Built on the ESP32 PICO D4 MCU and Semtech SX1276/78 LoRa wireless chipset, TrackerD-LS provides reliable long-range communication over LoRaWAN® networks while delivering accurate GPS location tracking.

TrackerD-LS features motion detection capabilities that automatically adjust transmission frequency when movement is detected, optimizing both tracking performance and power consumption. In areas without LoRaWAN® coverage, the device stores location data locally and automatically uploads it once network connectivity is restored.

Equipped with a 3000mAh rechargeable Li-ion battery and built-in solar panel, TrackerD-LS is engineered for multi-year outdoor deployments with minimal maintenance. It supports LoRaWAN® 1.0.3 Class A protocol and includes unique OTAA keys for secure network registration. Developers can customize firmware using Arduino IDE, making it ideal for advanced IoT asset tracking solutions.

AIoTkart® supplies genuine Dragino TrackerD-LS devices in India with full LoRaWAN® integration support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • ESP32 PICO D4 microcontroller
  • SX1276/78 LoRa wireless chip
  • Solar-powered with 3000mAh Li-ion battery
  • Regular and real-time GPS tracking
  • Motion detection with adaptive reporting
  • Offline data logging when LoRaWAN® is unavailable
  • Arduino IDE compatible (open-source platform)
  • Built-in 3-axis accelerometer
  • Power monitoring capability
  • USB charging circuit
  • Designed for long-term outdoor asset tracking

Microcontroller

  • MCU: ESP32 PICO D4
  • Integrated SPI Flash: 4 MB
  • RAM: 448 KB
  • EEPROM: 520 KB
  • Clock Speed: 32 MHz

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max Link Budget: 168 dB
  • RF Output: +20 dBm (100 mW) / +14 dBm PA
  • RX Sensitivity: Down to -148 dBm
  • Modulation: FSK, GFSK, MSK, GMSK, LoRa, OOK
  • Packet Engine: Up to 256 bytes with CRC
  • Protocol: LoRaWAN® 1.0.3

Power & Battery

  • Battery: 3000mAh Li-ion rechargeable
  • Built-in Solar Panel
  • Supply Voltage: 2.5V ~ 3.6V
  • Sleep Mode: 60 µA
  • LoRa Transmit Mode: 125mA @ 20dBm / 44mA @ 14dBm
  • Tracking Mode: Max 38mA

Environmental

  • Operating Temperature: -40°C to 60°C

The Dragino TrackerD-LS LoRaWAN® Tracker is ideal for:

  • Logistics and supply chain management
  • Fleet tracking
  • Container and cargo monitoring
  • Agricultural equipment tracking
  • Utility and infrastructure asset monitoring
  • Construction equipment tracking
  • Remote industrial asset management

TrackerD-LS uses LoRaWAN® for long-range, low-power communication and includes solar charging with a 3000mAh battery, making it suitable for multi-year outdoor deployments.

Yes. It stores GPS data locally when there is no network and uploads the stored data once LoRaWAN® connectivity is restored.

Yes. It is open-source and Arduino IDE compatible, allowing developers to customize firmware for specific IoT tracking applications.
