PS-LS-NA LoRaWAN® Analog Sensor (0~20mA, 0~ 30V sensor Interface - Without Sensor)

https://www.aiotkart.com/web/image/product.template/17750/image_1920?unique=9aefc19

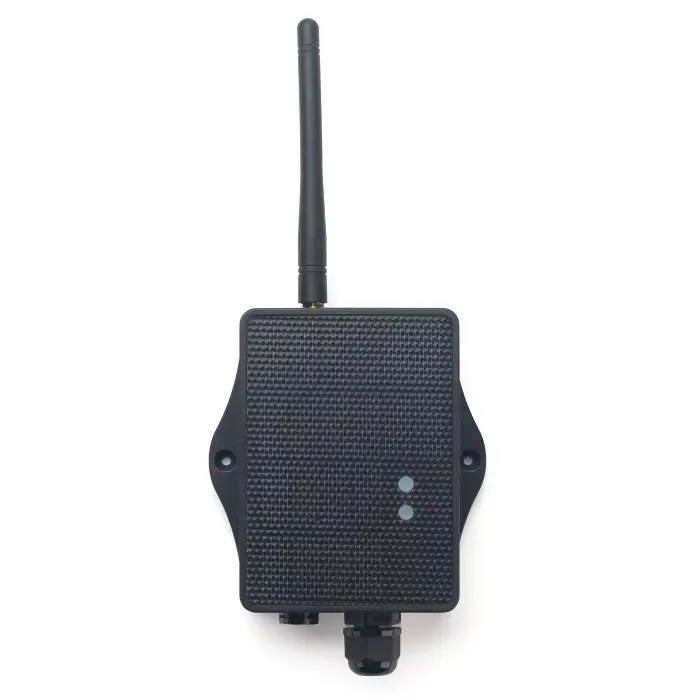

The Dragino PS-LS-NA LoRaWAN® Analog Sensor (0~20mA, 0~30V Interface) is a solar-powered industrial LoRaWAN® data acquisition device designed for analog sensor integration across India. Built for Industrial IoT deployments, the Dragino PS-LS-NA supports 0–20mA current input and 0–30V voltage input, converting analog signals into secure LoRaWAN® wireless data for transmission to IoT platforms via standard LoRaWAN® gateways. It also provides 5V and 12V outputs to power external sensors such as pressure, level, and flow transmitters. With solar panel support and a 3000mAh Li-ion battery, the PS-LS-NA is engineered for long-term outdoor operation. Fully compliant with LoRaWAN® 1.0.3 protocol and supporting IN865 band for India, AIoTkart® supplies genuine Dragino PS-LS-NA devices as an Authorized Dragino Distributor in India.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 1 × 0~20mA analog current input
  • 1 × 0~30V analog voltage input
  • 5V and 12V output to power external sensors
  • Converts analog signals to LoRaWAN® data
  • Ultra-low power consumption design
  • Solar panel + 3000mAh Li-ion battery
  • Monitor battery level remotely
  • BLE v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Periodic uplink with configurable interval
  • Multi-band support including IN865 (India)

Micro Controller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Power Supply

  • Supply Voltage: 2.5V ~ 3.6V
  • Power Option: Solar panel + 3000mAh Li-ion battery (PS-LS-NA)
  • Operating Temperature: -40°C to 85°C

Analog Input Specifications

Current Input (DC):

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input:

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

LoRa Specifications

  • Frequency Range (Band 1 HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • 82mA @ 14dBm

Package Includes

  • 1 × PS-LS-NA LoRaWAN® Analog Sensor

The Dragino PS-LS-NA LoRaWAN® Analog Sensor is suitable for:

  • Industrial automation and process monitoring
  • Commercial infrastructure equipment monitoring
  • Water system pressure and level measurement
  • Cold chain environmental transmitters
  • Manufacturing process signal monitoring
  • Utility SCADA analog signal integration
  • Infrastructure monitoring projects
  • Campuses and institutional facilities

It enables seamless integration of 4–20mA and 0–30V industrial transmitters into LoRaWAN®-based Industrial IoT networks across India.

You can purchase the Dragino PS-LS-NA LoRaWAN® Analog Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide shipping and industrial deployment support.

Yes, the PS-LS-NA supports one 0–20mA input and one 0–30V input, allowing integration of standard industrial transmitters such as pressure, level, and flow sensors into LoRaWAN® networks.

Yes, with solar power support, long-term operation design, and IN865 band compatibility, the PS-LS-NA is ideal for outdoor Industrial LoRaWAN® projects across India.

Documents

PS-LS-NA_User_Manual

Download

PS-LS-NA_Datasheet

Download

PS-LS-NA_Firmware

Download
