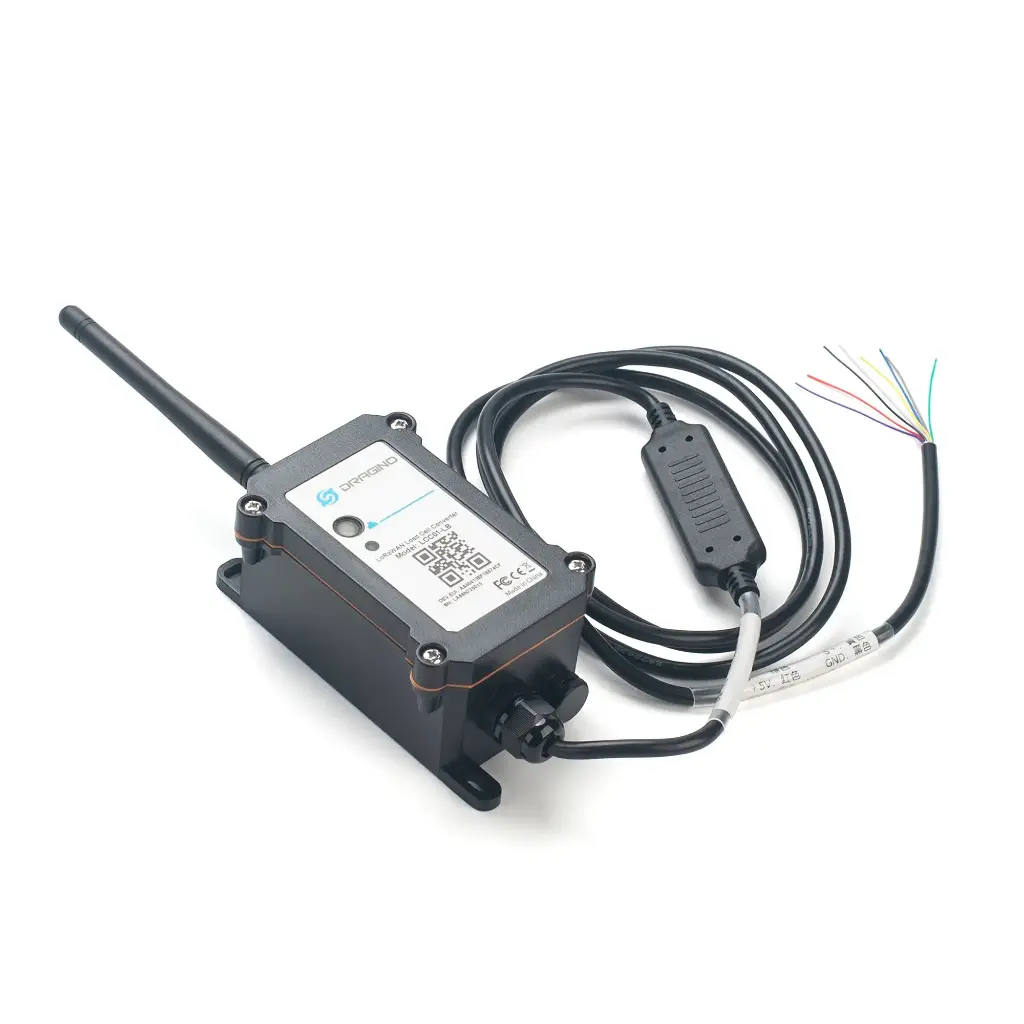

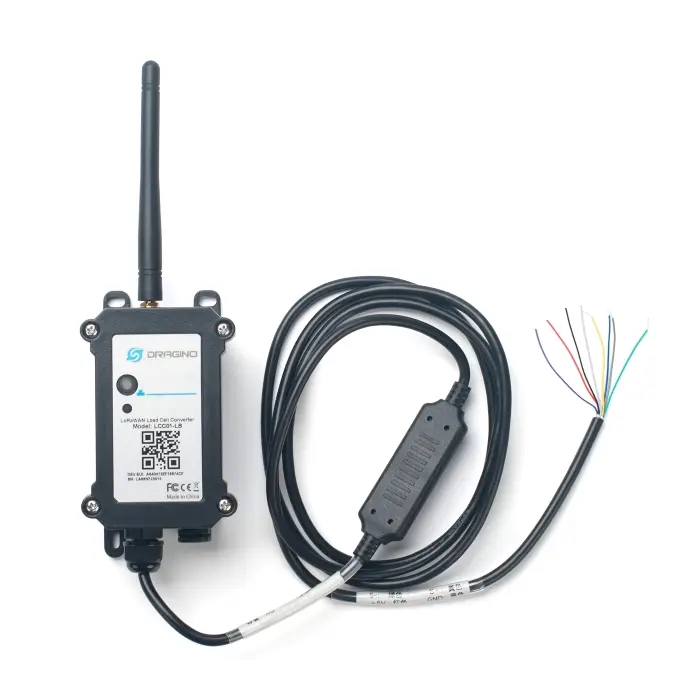

LCC01-LB LoRaWAN® Load Cell Converter

https://www.aiotkart.com/web/image/product.template/17682/image_1920?unique=46e5304

The Dragino LCC01-LB LoRaWAN® Load Cell Converter is an industrial-grade weight measurement controller designed for IoT-based weighing solutions across India. Built for seamless integration with standard 4-wire load cells, the LCC01-LB converts analog load cell signals into LoRaWAN® wireless data and transmits it securely to IoT servers over long distances. Supporting scaling from grams to tons, this device enables smart weighing applications such as truck scales, weighbridges, hopper systems, and industrial bench scales. AIoTkart®, an Authorized Dragino Distributor in India, supplies genuine LCC01-LB LoRaWAN® load cell converters for industrial, commercial, and institutional deployments requiring low-power LPWAN-based remote weight monitoring with long battery life and reliable wireless connectivity.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • LoRa frequency bands including IN865 for India
  • Standard 4-wire interface for third-party load cells
  • Weight measurement range from 100g to 10 tons (based on load cell)
  • Ultra-low power consumption design
  • Periodic uplink with configurable downlink control
  • BLE configuration support
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware updates
  • 8500mAh Li/SOCl2 battery for up to 5 years operation
  • Pre-loaded unique LoRaWAN® keys for easy activation

Common DC Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

LoRa Specifications

  • Frequency Range (HF): 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High blocking immunity and interference resistance

Battery

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Interfaces & Compatibility

  • Interface: Standard 4-wire load cell input
  • Load Cell Types Supported: Bending beam, compression, canister, S-type and other standard load cells

The Dragino LCC01-LB is ideal for IoT-based weight monitoring across India in:

  • Industrial automation and manufacturing weighing systems
  • Commercial infrastructure such as supermarkets and retail scales
  • Water systems and tank/silo weighing
  • Cold chain logistics and warehouse weight monitoring
  • Truck scales and weighbridges
  • Railroad scales and crane scales
  • Hopper weighing and packaging machines
  • Campuses & institutions conducting testing and measurement applications

You can purchase the genuine Dragino LCC01-LB from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and project-level technical support.

Yes. The LCC01-LB supports LoRaWAN® 1.0.3 Class A and IN865 band, making it suitable for long-range LPWAN weight monitoring systems across industrial and commercial sites in India.

The LCC01-LB supports standard 4-wire load cells including bending beam, compression, canister, S-type load cells, weighbridges, hopper systems, and truck scales.

Documents

LCC01-LB_User_Manual

Download

LCC01-LB_Datasheet

Download

LCC01-LB_Firmware

Download
