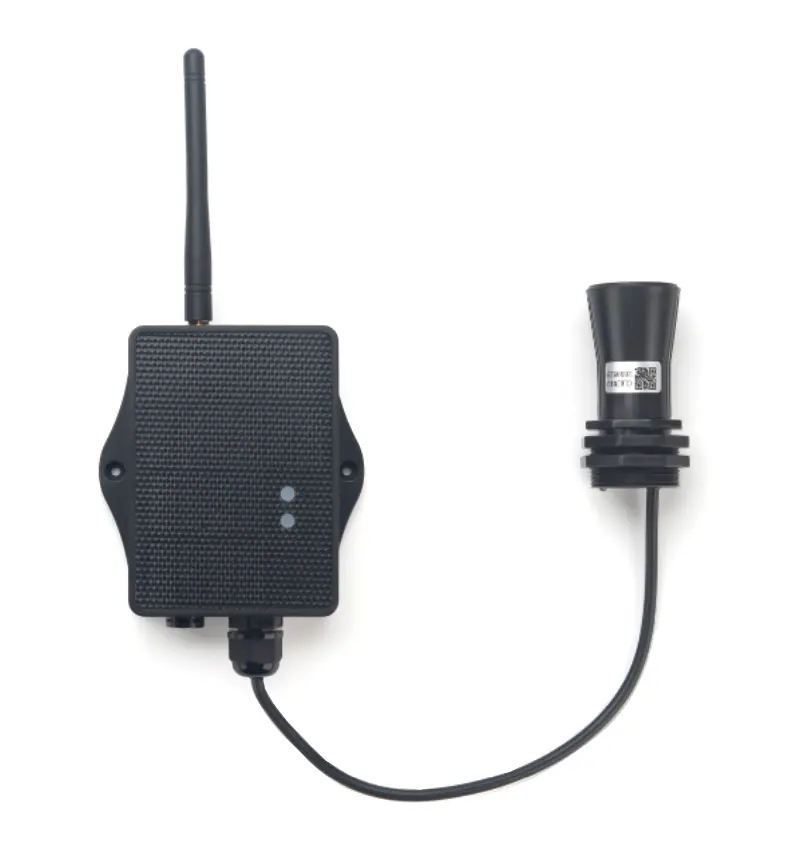

DDS75-LS LoRaWAN® Ultrasonic Distance Detection Sensor

https://www.aiotkart.com/web/image/product.template/17656/image_1920?unique=d444c8f

The Dragino DDS75-LS LoRaWAN® Ultrasonic Distance Detection Sensor is a long-range, solar-powered industrial IoT sensor designed for high-precision distance and level monitoring applications. As an Authorized Dragino Distributor in India, AIoTkart® supplies the DDS75-LS for smart city projects, industrial automation, large tank monitoring, sewer management, and parking systems.

The DDS75-LS uses advanced ultrasonic sensing technology combined with internal temperature compensation to deliver reliable and stable distance measurements even in harsh environmental conditions. It measures the distance between the sensor and a flat object and transmits real-time data to a LoRaWAN® IoT server for remote monitoring and analytics.

With a measurement range of up to 7.5 meters and integrated solar power with rechargeable battery, the DDS75-LS is ideal for long-term outdoor deployments in remote or off-grid environments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Ultrasonic distance detection technology
  • Extended measurement range: 280mm – 7500mm
  • Accuracy: ±(1cm + S × 0.3%)
  • 40° measurement angle
  • Internal temperature compensation
  • Ultra-low power consumption
  • IP66 waterproof enclosure
  • Solar panel + 3000mAh rechargeable Li-ion battery (DDS75-LS)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Downlink parameter configuration
  • Periodic uplink transmission
  • Pre-loaded LoRaWAN® keys for automatic network activation
  • Supports IN865 and global ISM bands

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Cable Length: 25cm
  • Package Dimension: 150 × 120 × 55 mm
  • Weight: 220 g

Measurement Specifications

  • Measurement Method: Ultrasonic
  • Distance Range (Flat Object): 280mm – 7500mm
  • Accuracy: ±(1cm + S × 0.3%)
  • Measuring Angle: 40°
  • Temperature Compensation: Internal

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (DDS75-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS75-LS is ideal for:

  • Long-range horizontal distance measurement
  • Large tank liquid level monitoring
  • Smart parking management systems
  • Object proximity and presence detection
  • Intelligent waste bin monitoring
  • Robot obstacle avoidance
  • Industrial automation and automatic control systems
  • Sewer and drainage monitoring
  • Bottom water level monitoring
  • Smart city IoT infrastructure

It measures distances from 280mm up to 7500mm (7.5 meters).

Yes. With its IP66-rated enclosure and integrated solar power system, it is ideal for outdoor and off-grid installations.

Yes. Its extended measurement range makes it suitable for large industrial tanks and reservoirs.

Documents

 DDS75-LS_User_Manual

Download

DDS75-LS_Datasheet

Download

DDS75-LS_Firmware

Download
