Dragino CPL03-LS Outdoor LoRaWAN® Open/Close Dry Contact Sensor

https://www.aiotkart.com/web/image/product.template/17638/image_1920?unique=d152e8c

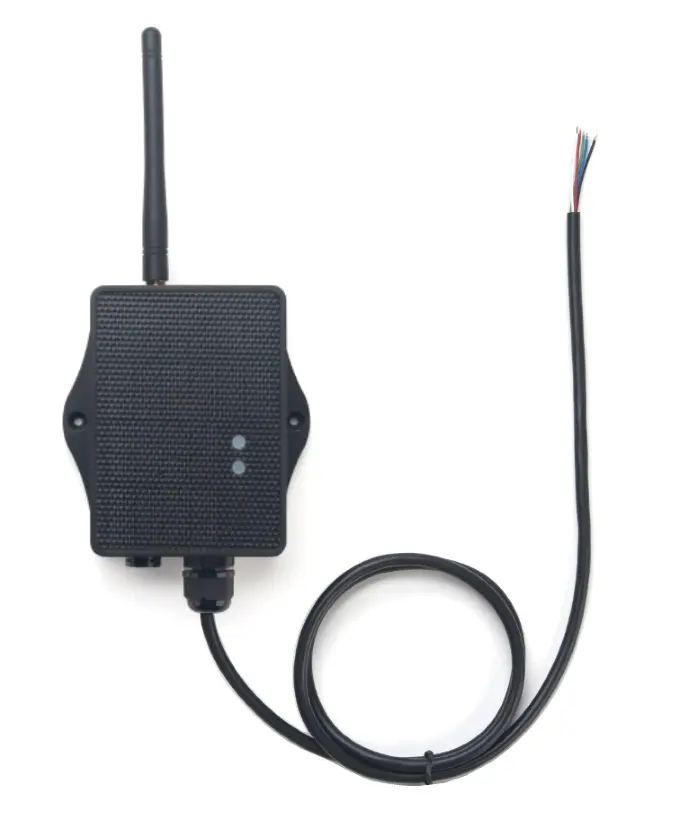

The Dragino CPL03-LS Outdoor LoRaWAN® Open/Close Dry Contact Sensor is a solar-powered industrial LoRa / LoRaWAN® contact sensor designed for reliable long-range monitoring across India. Engineered for outdoor environments, the CPL03-LS detects dry contact open/close status, tracks open duration and counts, and transmits data securely to IoT servers using LoRaWAN® Class A protocol. With IP67 weatherproof protection, ultra-low power consumption, and solar panel with 3000mAh Li-ion battery backup, this device is ideal for infrastructure, utilities, industrial automation, and institutional deployments. As an Authorized Dragino Distributor in India, AIoTkart® supplies genuine CPL03-LS sensors with PAN-India delivery and deployment support. Featuring open alarm alerts, datalog backup during network outages, BLE configuration, and OTA firmware updates, the CPL03-LS ensures dependable performance for Indian commercial and industrial IoT applications.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar panel with 3000mAh Li-ion battery
  • IP67 weatherproof outdoor enclosure
  • Detects dry contact open/close status
  • Records open counts and last open duration
  • Instant open alarm notification support
  • Periodic and event-based uplink
  • Datalog feature for network outage recovery
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Ultra-low power consumption
  • Pre-loaded unique LoRaWAN® OTAA keys
  • Multi-band support including IN865

Electrical

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to +85°C

LoRaWAN® RF Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Regional Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (CPL03-LS)

  • Solar Panel Powered
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for long-term outdoor use (up to 5 years depending on conditions)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Protection Rating: IP67
  • Dimensions: 195 x 125 x 55 mm
  • Weight: 420g

Package Includes

  • 1 x CPL03-LS Outdoor LoRaWAN® Contact Sensor

The Dragino CPL03-LS Outdoor LoRaWAN® Dry Contact Sensor is suitable for:

  • Industrial automation and remote equipment monitoring
  • Commercial infrastructure access and door monitoring
  • Water system valve and pump status detection
  • Cold chain storage door monitoring
  • Manufacturing plant process control
  • Utility cabinets and electrical panel monitoring
  • Smart infrastructure and municipal deployments
  • Campuses and institutional security systems

You can purchase the genuine Dragino CPL03-LS Outdoor LoRaWAN® Contact Sensor from AIoTkart®, the authorized Dragino distributor in India offering nationwide delivery and project support.

Yes, the CPL03-LS supports LoRaWAN® 1.0.3 Class A and multiple regional bands including IN865, making it ideal for industrial and commercial LoRaWAN® networks across India.

The CPL03-LS is solar-powered with a 3000mAh Li-ion battery, while the CPL03-LB uses a primary 8500mAh Li/SOCl2 battery. The LS model is suitable for long-term outdoor installations where solar charging is preferred.
