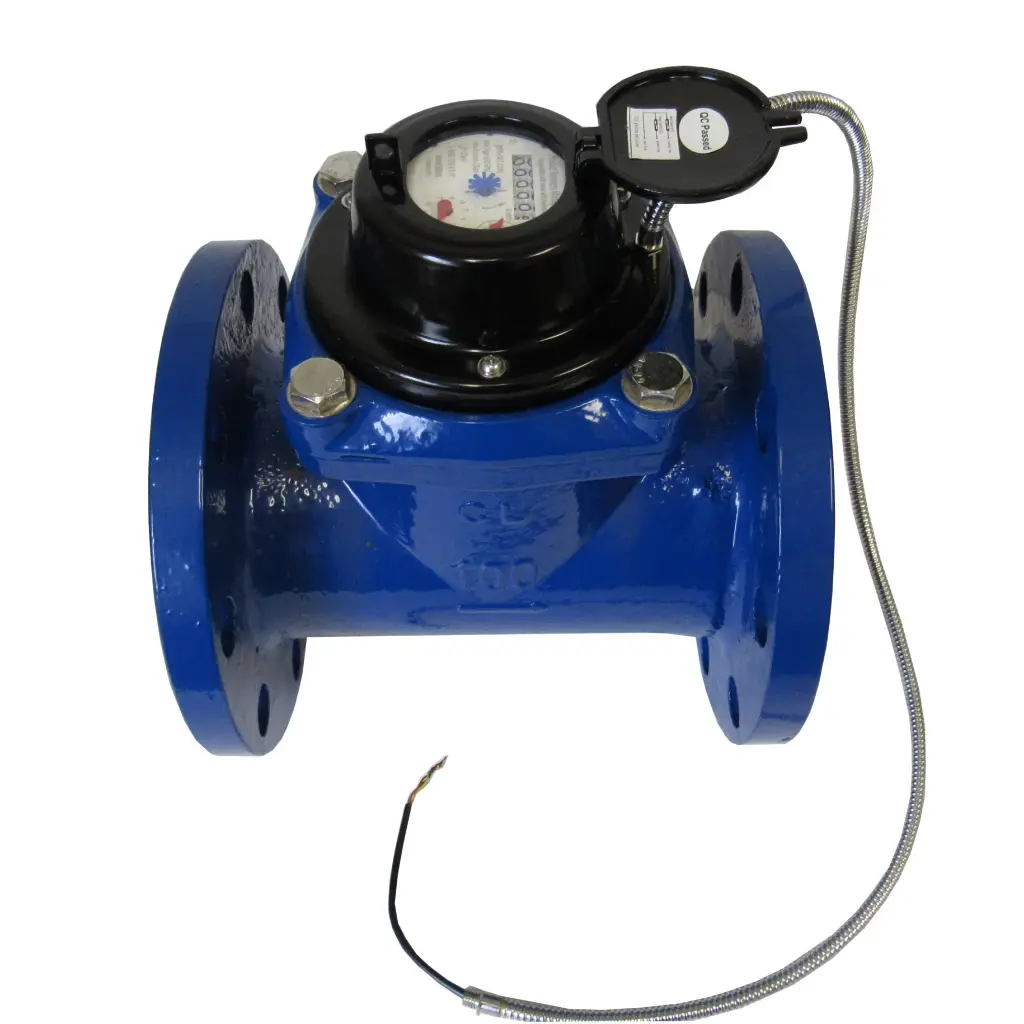

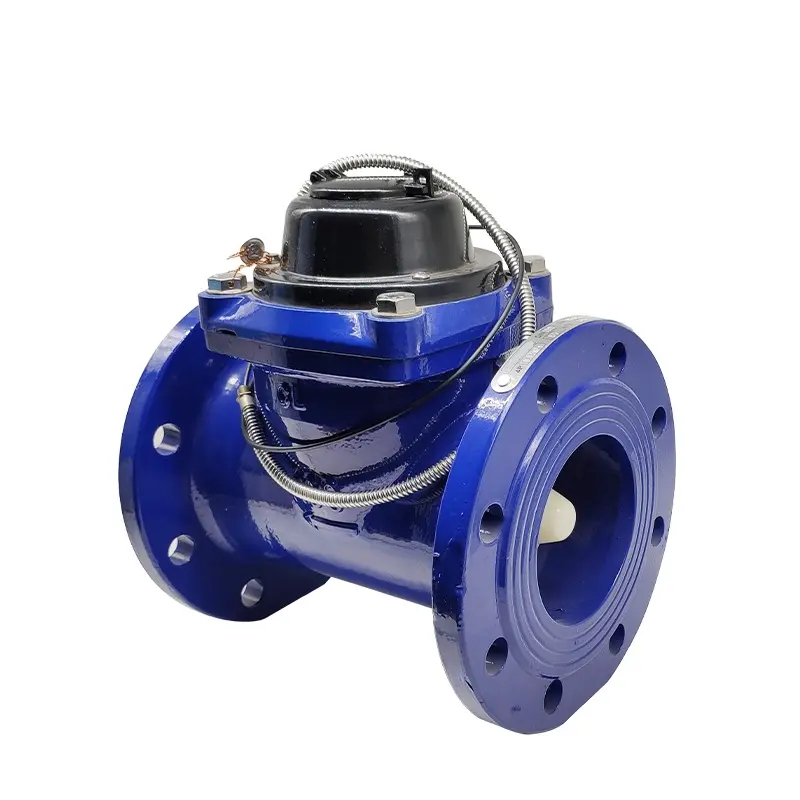

[AD-WWM] DN125 Woltman type Mechanical Water Meter with Pulse Output

Key Features

• Modular Design: Easy installation and maintenance with a detachable, universal register that eliminates the need to dismantle the pipeline.

• Reliable Operation: Dry-dial with magnetic drive ensures smooth, sensitive performance with minimal pressure loss.

• Clear Readings: Vacuum-sealed register prevents fogging, providing long-lasting clarity.

• Durable Construction: Cast iron body with flange connections, engineered for stability and longevity.

Technical Specifications

• Sizes: DN15 to DN600 mm

• Working Pressure: 10 bar / 16 bar (optionally up to 25 bar)

• Water Temperature Range: 0.1°C to 50°C

• Pulse Outputs: 10/100/1000 L per pulse (depending on size)

• Reed Switch Option: Dual reed switch system prevents signal loss or overcounting, ensuring accurate remote signal transmission.

Applications

• Commercial and residential complexes

• Industrial water supply systems

• Municipal water distribution networks

Manual:

Akvodrops WATER METER (AD-WWM).pdf
